4G+GPS Two-in-One Combo Antenna 802

Professional antenna manufacturer specializing in wireless communication products research & development!

  • 802
  • 820-960/1710-2700MHz
  • 10W
  • 80*16mm ,2000±5 mm
Quantity:

4G+GPS Two-in-One Combo Antenna, Waterproof Combined Chassis Antenna,

Anti-theft Antenna, Vehicle Antenna, Outdoor Antenna

Professional antenna manufacturer specializing in wireless communication products research & development!

4G+GPS-EN

Sun-resistant , Waterproof, Explosion-proof, Antifreeze, Windproof


Advantage:

Wide coverage, independent channel, faster transmission: reduced co-channel interference, strengthen signal gain, and improved output performance.

The gain will be affected by the environment, the more open area, the further transmission distance.

● Easy installation

● Stable performance

● Powerful 3M sticker

● High receiving sensitivity

● Strong anti-interference

● Stronger signal


Superior material:

copper core material, with internal high-transmission oxygen-free copper core wire, makes signal transmission more stable and faster

● ABS material:  green material, eco-friendly, waterproof and durable

● SMA connector: gold-plated copper, international standard, rigorous production

● Using pure copper feeder: RG174 line, high-density pure copper wire, low signal attenuation.

Applicable Products:   advertising machine, vending machine, car positioning, wireless module, queuing machine, cabinet, chassis, car navigation, bus stop announcer,router, etc

Application Areas:   wireless monitoring, smart home, smart transportation, smart city,smart agriculture, wireless modules, etc.


Electrical test report:

Test parameters
Product Name 4G+GPS Cabinet Antenna
Model No 802
Electrical Specifications
Frequency 820-960MHz/1710-2700MHz
Impedance 50Ω
V.S.W.R ≦1.5
Polarization Verticall
Radiation direction  Full direction
Gain (GPS) 28dBi
Gain (4G) 4dBi
Linear polarization vertical
Power 10W
Mechanical Specifications
Connector SMA-J
Cable Length 2000±5 mm
Operating temperature -30℃~+80℃
Storage temperature 40~85%


Download Center

802 4g+GPS Specification V1.0 do


Size:

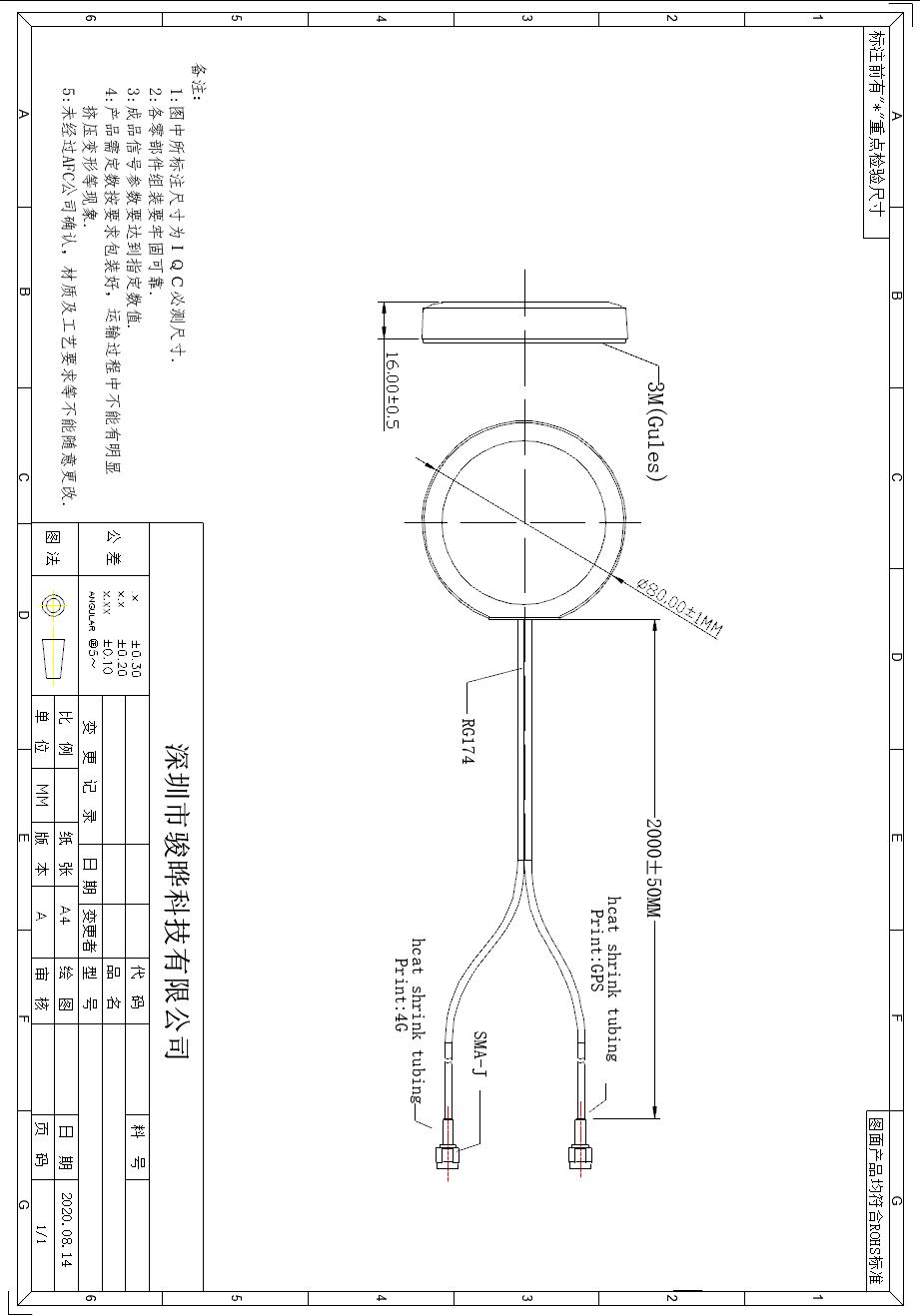

802GPS+4G骏晔
