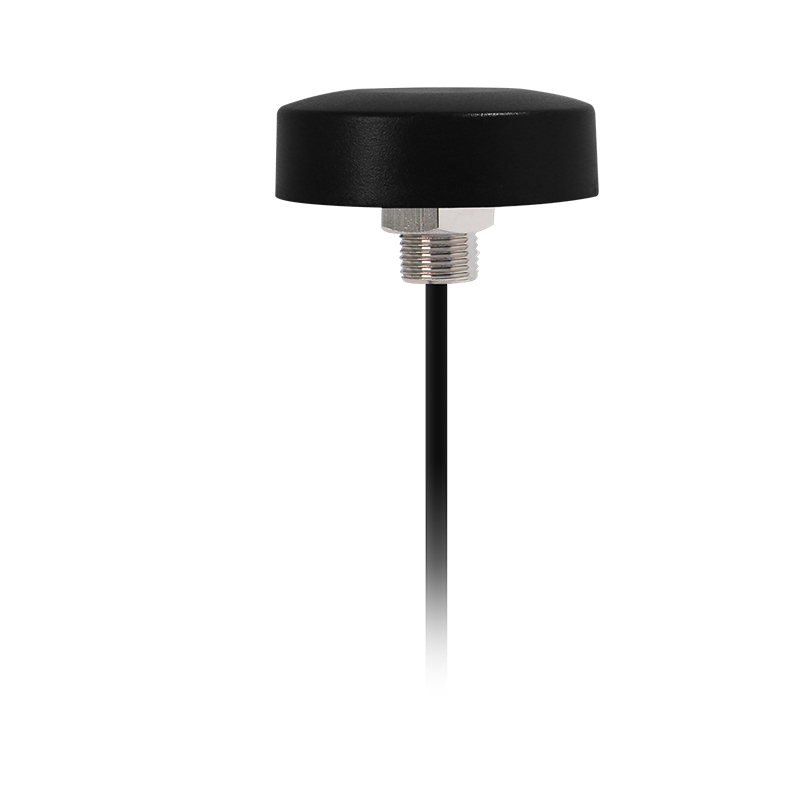

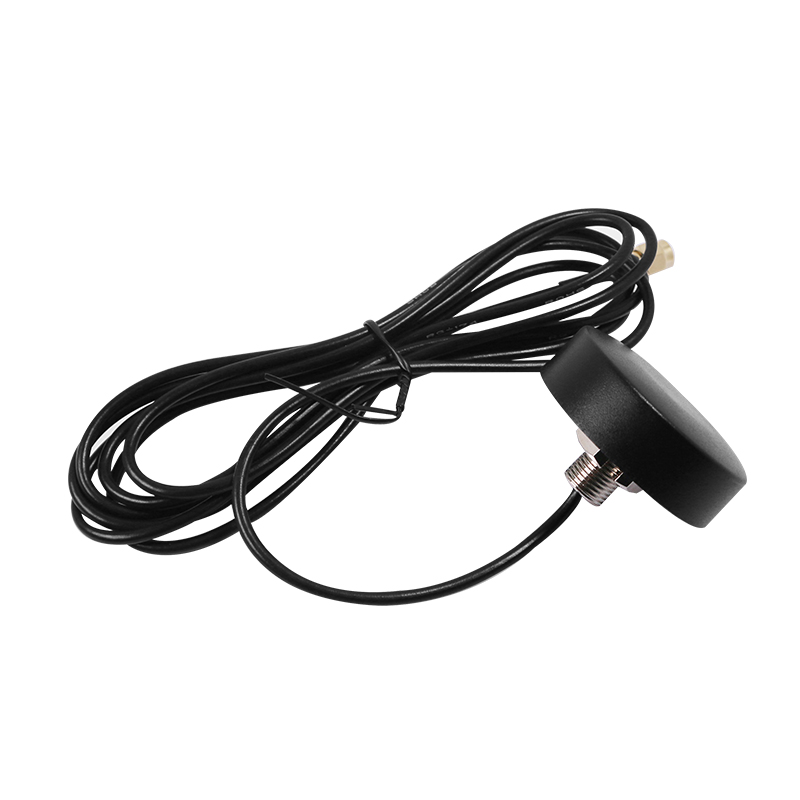

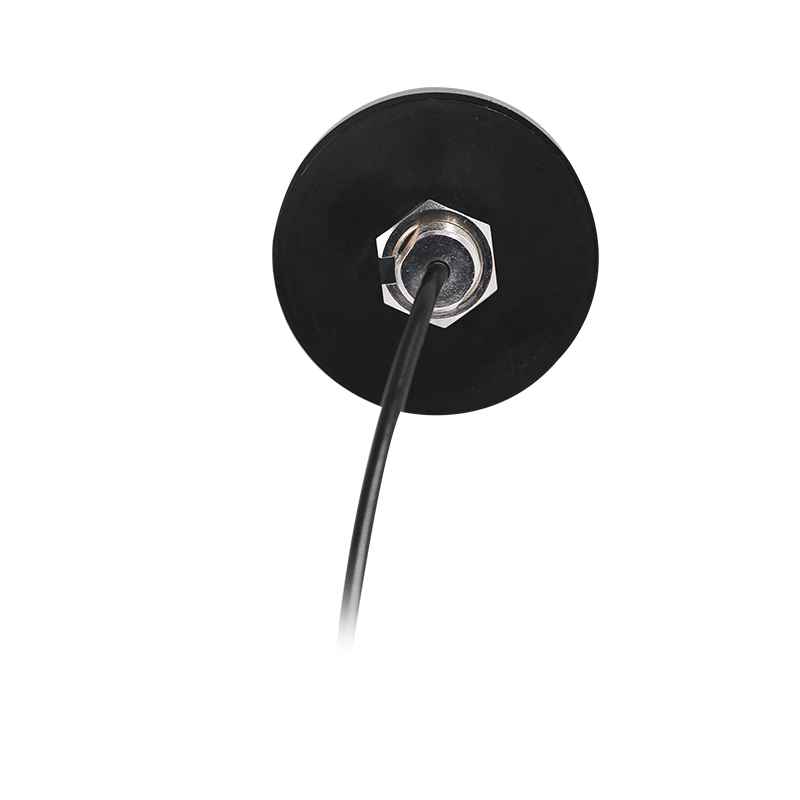

GPS + BD Two-in-One Cabinet Antenna 803

Professional antenna manufacturer specializing in wireless communication products research & development!

  • 803
  • 1560-1572.42 ±3MHz
  • 10W
  • 45*16mm ,2000±5 mm
Quantity:

GPS+BD Dual Mode Antenna, Two-in-One Combo Antenna, Waterproof Combined

Chassis Antenna, External Antenna, Active GPS Vehicle Antenna


Professional antenna manufacturer specializing in wireless communication products research & development!

Advantage:

● Dual amplifier with filter, gain can be amplified to 28dBi

● Adopt sophisticated and professional internal design, you can get higher antenna gain, stronger wireless signal, and wider coverage.

● High gain and wide range:The gain will be affected by the environment, the more open area, the further transmission distance

● Easy installation

● Stable performance

● Sun-resistant , Waterproof, Explosion-proof, Antifreeze, Windproof

● Superior material: copper core material, with internal high-transmission oxygen-free copper core wire, makes signal transmission more stable and faster


● ABS material:  green material, eco-friendly, waterproof and durable

● SMA connector: gold-plated copper, international standard, rigorous production

● Using pure copper feeder: RG174 line, high-density pure copper wire, low signal attenuation.

Applicable Products:   advertising machine, vending machine, car positioning, wireless module, queuing machine, cabinet, chassis, car navigation, bus stop announcer,router, etc

Application Areas:   wireless monitoring, smart home, smart transportation, smart city,smart agriculture, wireless modules, etc.


Electrical test report:

Test parameters
Product Name GPS+BD Cabinet Antenna
Model No 803
Electrical Specifications
Frequency 1560-1572.42 ±3MHz
Impedance 50Ω
V.S.W.R ≦1.5
Polarization Verticall
Radiation direction  Full direction
Gain (GPS) 28dBi
Linear polarization vertical
Power 10W
Mechanical Specifications
Dimensions 45*16mm
Connector SMA-J
Cable Length 2000±5 mm
Operating temperature -30℃~+80℃
Storage temperature 40~85%


Download Center

803 GPS+BD Specification V1.0 do
