433/315MHz Eight Keys 1527 Learning Code Remote Control

433/315 MHz 8 Keys 1527 Learning Code Remote Control, for access control & industrial control use
  • R-C01-K8A

  • 433/315 MHz

  • 1527 Learning Code

  • 12mA

  • DC12V, 23A

  • -

  • 400m

  • 110* 37*15mm

Availability:
Quantity:

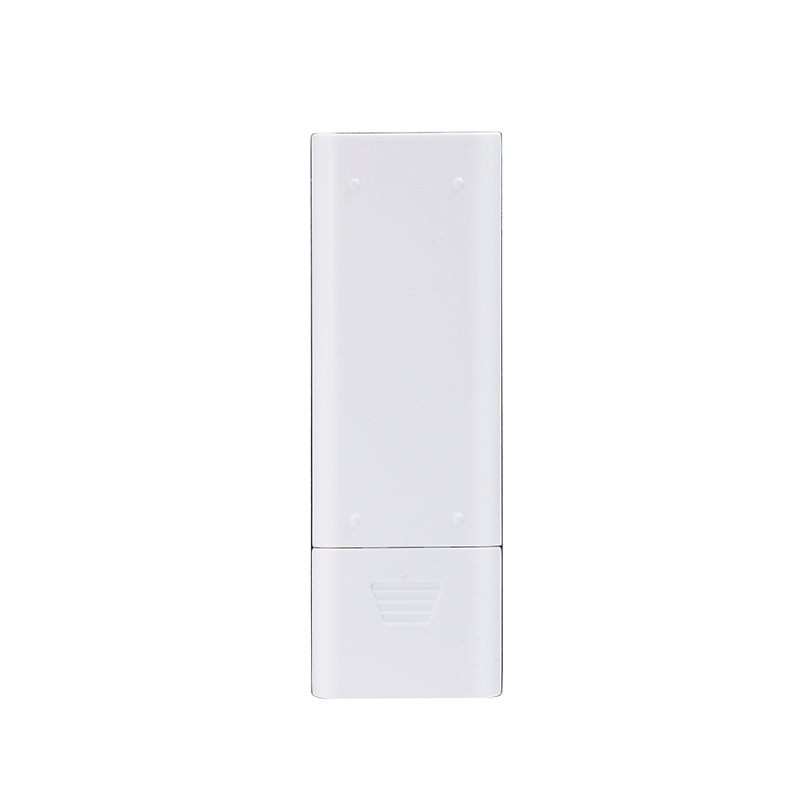

433/315 MHz Eight Keys Learning Code Remote Control R-C01-K8A


This 8 keys learning code remote control is widely used in access control, remote sensing & telemetry, security alarm devices, home automation, industrial control, motor switching control, motor forward and reverse remote controls, lighting control, LED lamp controllers, remote control electronic locks, curtain remote control, remotecontrol of drying racks, home security remote control, wireless pager remote control switch, industrialcontrol products, etc. Special function can be developed according to your requirements!


Indicator: red light as default Buttons: 8 keys


Brief Introduction

Model: R-C01-K8A

Frequency: 433MHz (other frequencies can be customized)

Coding Method: 1527 learning code

Period: T = 1.60ms

Modulation: ASK

Transmission power: 15dBm

Working Current: 12mA@12V

Standby Current: 1uA

Power Supply: 12V, 23A battery (one section)

Communication Range: around 400 meters (in open environment)

Dimension: 110*37*15mm

N.W.: 60g


Download Center

R-C01-K8A Specification V1.0 do


Typical application

Wireless Remote Control System; Wireless Game Controller, Remote Control Toys; Wireless remote control for electronic consumer products; Industrial Remote Control, Intelligent Control System, Smart Home, Home Automation, Home Appliance Control, Building and Residential (smart home) Control, Remote control that supports radio frequency (RF) technology

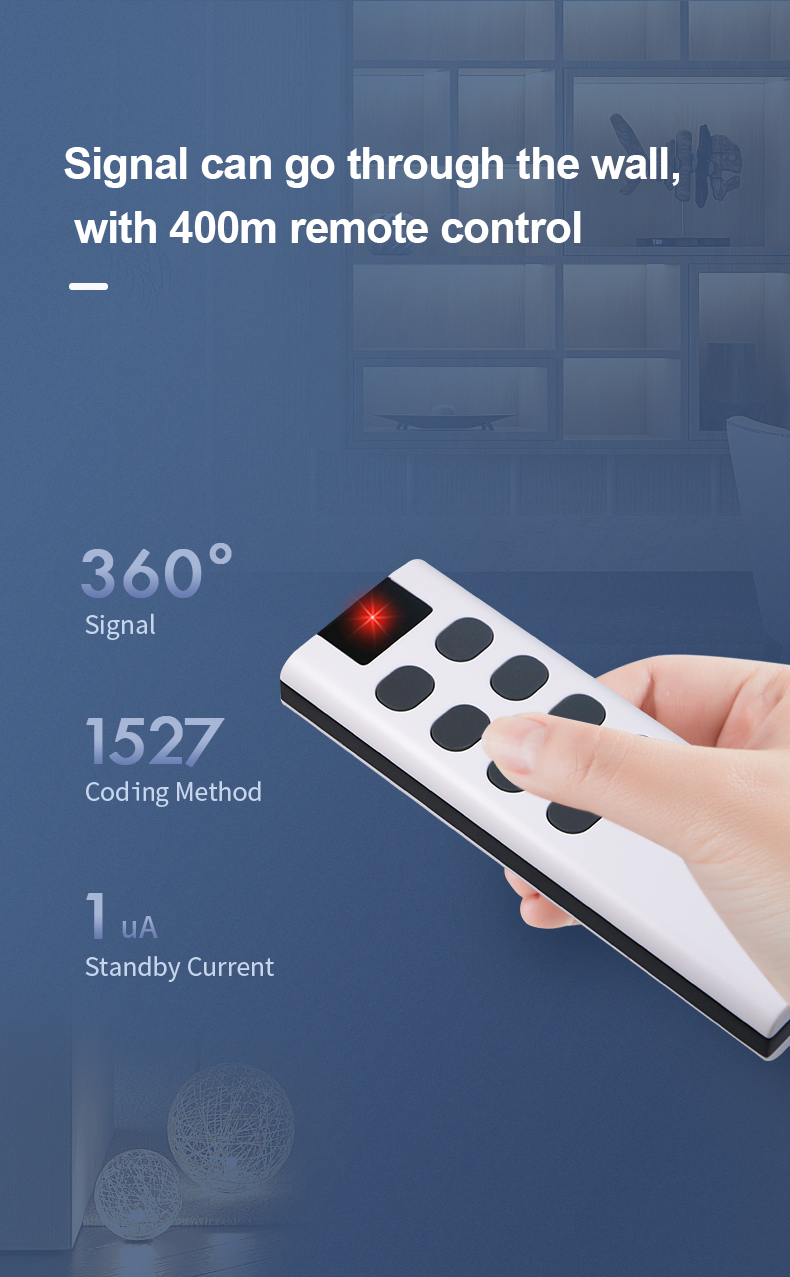

8--key-remote-control_018--key-remote-control_028--key-remote-control_038--key-remote-control_048--key-remote-control_068--key-remote-control_07

Typical-application
