RF transmitter & receiver

DREAMLNK is RF transmitter & receiver manufacturers and suppliers in China who can wholesale RF transmitter & receiver. We can provide professional service and better price for you. If you interested in RF transmitter & receiver products, please contact with us. Tips: Special needs, for example: OEM, ODM, customized according to demands, design and others, please email us and tell us detail needs. We follow the quality of rest assured that the price of conscience, dedicated service.

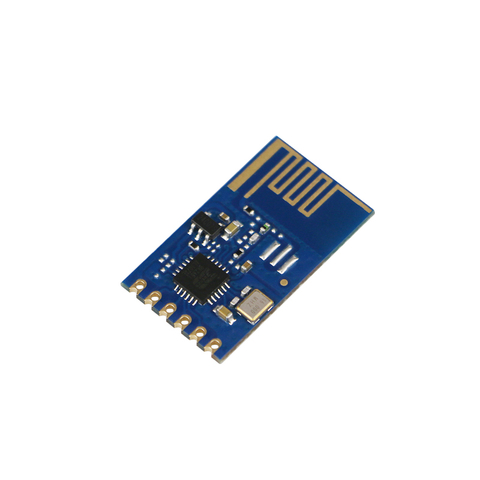

  • 2.4Ghz BK2461 UART Wireless Transparent Transmission Module (120M, 121 Channels)
    Model: M-BK2461U
    Chip: BK2461
    Frequency: 2.4G-2.5Ghz
    Voltage: DC 2.5~3.6V
    Distance: 120m
    Size: 23.3x13.7x1mm
    M-BK2461U 2.4G RF Module is a low-power, high-bandwidth wireless UART module operating in 2.4GHz ISM band. It adopts Beken BK2461 chip and serial port design, U-UART interface and 121 multi-channels development-free, which can be widely used in daily life where wireless connection is required.
  • 2.4G Wireless Transceiver Module XN297L with on-board antenna
    Model: DL-297LDA-S
    Chip: XN297
    Frequency: 2.4G-2.5Ghz
    Voltage: 1.9V~3.6V
    Distance: 100m
    Size: 22.8*13.5*2mm
    DL-297LDA-S series modules are low-power, high bandwidth wireless digital communication modules working in the 2.400-2.483ghz world-wide ISM band. The module has the characteristics of low cost, small size, stable work, and good product consistency. The maximum transmission rate can reach 2Mbps. It can be widely used in the situations where wireless connection is needed in daily life. It can also be used in industrial control, access control, attendance, monitoring and security industries.
  • 2.4G Wireless Transceiver Module XN297L With onboard antenna
    Model: DL-297LDA
    Chip: XN 297
    Frequency: 2.4G-2.5Ghz
    Voltage: 1.9V~3.6V
    Distance: 100m
    Size: 16*11.8*2mm
    DL-297LDA series modules are low-power, high bandwidth wireless digital communication modules working in the 2.400-2.483ghz world-wide ISM band. The module has the characteristics of low cost, small size, stable work, and good product consistency. The maximum transmission rate can reach 2Mbps. It can be widely used in the situations where wireless connection is needed in daily life. It can also be used in industrial control, access control, attendance, monitoring and security industries.
  • 2.4g RF Receiving & Transmitting Module
    Model: DL-24A
    Chip: CC2500
    Frequency: 2.4G-2.5Ghz
    Voltage: 1.8~3.6V
    Distance: 100m
    Size: 17.6*12*2mm
    RF Transceiver Module Designed base on CC2500 wireless transceiver chip
  • 2.4G RF Transceiver Module DL-24D8 with TI CC2500 Chip
    Model: DL-24D8
    Chip: CC2500
    Frequency: 2.4G-2.5Ghz
    Voltage: 1.8~3.6V
    Distance: 100m
    Size: 15.2* 11.6*2.2mm
    2.4G RF Transceiver Module with CC2500 Wireless Transceiver Chip
  • 2.4G Wireless Transceiver Module XN297L
    Model: DL-297LD
    Chip: XN 297
    Frequency: 2.4G-2.5Ghz
    Voltage: 1.9V~3.6V
    Distance: 100m
    Size: 11.5*10*2mm
    DL-297LD series modules are low-power, high bandwidth wireless digital communication modules working in the 2.400-2.483ghz world-wide ISM band. The module has the characteristics of low cost, small size, stable work, and good product consistency. The maximum transmission rate can reach 2Mbps. It can be widely used in the situations where wireless connection is needed in daily life. It can also be used in industrial control, access control, attendance, monitoring and security industries.
