Wireless Transceiver Module

DREAMLNK is Wireless Transceiver Module manufacturers and suppliers in China who can wholesale Wireless Transceiver Module. We can provide professional service and better price for you. If you interested in Wireless Transceiver Module products, please contact with us. Tips: Special needs, for example: OEM, ODM, customized according to demands, design and others, please email us and tell us detail needs. We follow the quality of rest assured that the price of conscience, dedicated service.
  • UART Wireless FSK Transceiver Module Base on CMT2310 RF Chip
    Model: DL-RTM300-B
    Chip: CMT2310
    Frequency: 433MHz/868MHz/915MHz
    Voltage: 2.0~3.6V
    Distance: 1800m
    Size: 15*13.8*2.5mm
    DL-RTM300-B RF Module is an UART wireless serial port module with AT commands. It combines an integrated RF Controller with ARM Cortex-M0 32-bit core, 64kB on-chip Flash, 8kB on-chip SRAM, and supports hardware parity check. The Clock Speed of the main frequency can reach up to 48MHz. The high efficiency of receiving sensitivity enables this RF module to have excellent RF performance and strong anti-interference ability in the 420-510MHz/860-950MHz frequency bands.
  • 433Mhz/868MHz/915MHz Wireless Transceiver Module with PAN3029 Chip
    Model: DL-PAN3029-S
    Chip: PAN3029
    Frequency: 433MHz/868MHz/915MHz
    Voltage: 2.0~3.6V
    Distance: 3000m
    Size: 17.1*16.1*2.5mm
    DL-PAN3029-S is a wireless module designed based on PANCHIP’s radio frequency chip PAN3029.The power supply of this module adopts a chip integrated DCDC working mode, which can greatly reduce power consumption in various modes. It is equipped with a built-in temperature compensation crystal, which can effectively reduce temperature drift and ensuring more stable transmission.
  • RFM95 868/915Mhz SX1276 Wireless Transceiver Modules
    Model: DL-RFM95
    Chip: SX1276
    Frequency: 868/915Mhz
    Voltage: 1.8~3.6 V
    Distance: 3000m
    Size: 16*16*3.9mm
    The 868/915Mhz RFM95 Wireless Transceiver Moduless feature the LoRa long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.
  • 433Mhz High Power UART Wireless Transceiver Module with PAN3028 Chip
    Model: DL-P3028MPA
    Chip: PAN3028
    Frequency: 398~510MHz
    Voltage: 3.5~5.5V
    Distance: 3000m
    Size: 34.3*20.5*4.15mm
    This DL-P3028MPA RF module is a high-power UART Transceiver Module with PA, it was designed base on PAN3028 high-performance RF chip and built-in HC32L130 low-power MCU. It is an UART Module with AT command, which supports a maximum power output of 32dBm and a sensitivity of -140dBm; it is an effective wireless module which can provide excellent RF performance and strong anti-interference performance in the 398-510MHz frequency band.
  • Long Range 433Mhz Spread Spectrum SX1278 LoRa Wireless Module
    Model: M-SX1278S2
    Chip: SX1278
    Frequency: 433/470MHz
    Voltage: 1.8~3.6V
    Distance: 3000m
    Size: 17.1*16.1*2mm
    M-SX1278S2 LoRa module with Semtech’s SX1278 chip, it is a 433Mhz LoRa Wireless Module with 3KM long range and 100mW output power.

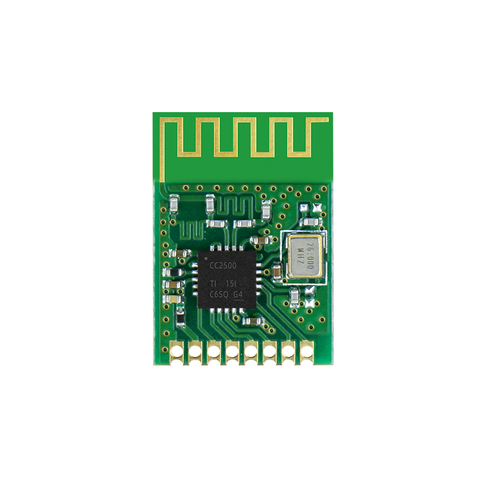

  • 2.4G Wireless Transceiver Module with CC2500 Chip Design
    Model: DL-24D8A-C
    Chip: CC2500
    Frequency: 2400~2483.5MHz
    Voltage: 1.8~3.6V
    Distance: 100m
    Size: 17.1*12.2*1.57mm
    Designed base on TI-Chipcon's CC2500 wireless transceiver chip, this DL-24D8A-C is a compact remote wireless transceiver module, which is widely used in smart home, toy aeromodelling and close-range data transmission control fields.
