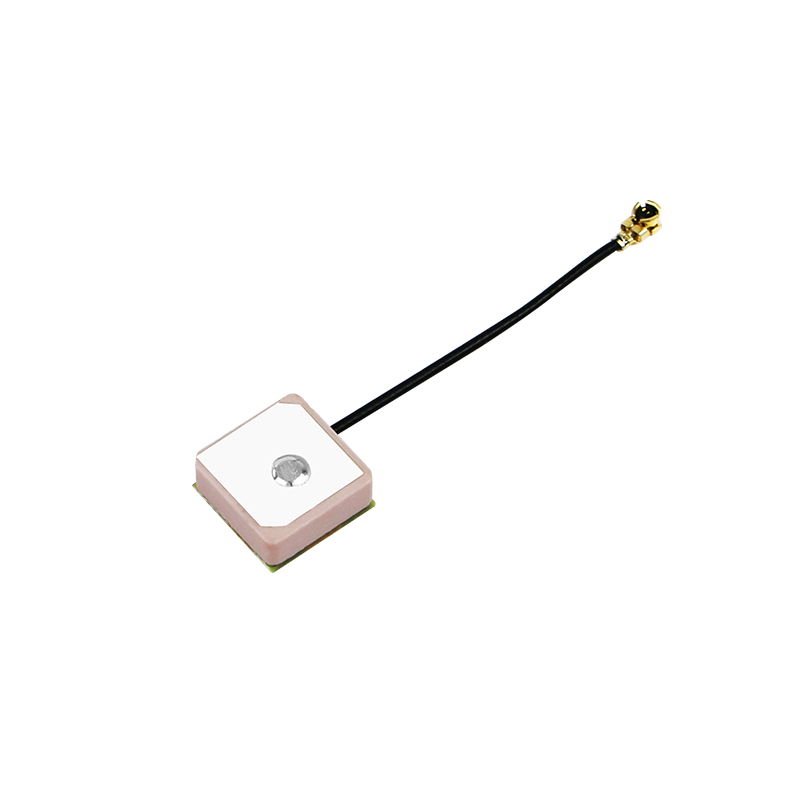

12*12*6.5mm GPS Active Ceramic Antenna with IPEX-I Connector

12*12*6.5mm GPS Active Ceramic Antenna with IPEX-I Connector, 1561.098MHz~1575.42MHz
  • DreamLNK/骏晔

  • DL-812

  • 1561.098MHz~1575.42MHz

  • 20W

  • DC 3.0±0.3V

  • 12mm(L)×12mm(W)×6.5mm(H)


12*12*6.5mm GPS Active Ceramic Antenna with IPEX-I Connector

Various sizes available, OEM/ODM acceptable

8X8mm 10X10mm

12X12mm 15X15mm

18X18mm 20X20mm

25X25mm 35X35mm

16X6mm 19x6mm

... ..

Factory Direct Supply, Bulk Purchases are Welcome!

Honest Operation, Just for Your Assured Purchase!

Precision Manufacturing with Good Quality!

Sufficient Inventory and Fast Delivery!

Antenna Composition: Antenna body,

Strictly selected materials: anti-oxidation ceramic medium, waterproof design, high receiving sensitivity, fast receiving satellite signals.

Shield details: tinplate shield, firm welding, isolate outside interference


● Dual amplifier with filter, gain can be amplified to 28dBi

● Adopt sophisticated and professional internal design, you can get higher antenna gain, stronger wireless signal, and wider coverage.

● High gain and wide range:The gain will be affected by the environment, the more open area, the further transmission distance

● Easy installation

● Stable performance

● Sun-resistant , Waterproof, Explosion-proof, Antifreeze, Windproof

● Superior material: copper core material, with internal high-transmission oxygen-free copper core wire, makes signal transmission more stable and faster

● ABS material:  green material, eco-friendly, waterproof and durable

● SMA connector: gold-plated copper, international standard, rigorous production

● Using pure copper feeder: RG174 line, high-density pure copper wire, low signal attenuation.

Applicable Products:   4S Car stores, Car dealership, Rental companies, DVD navigation, advertising machine, vending machine, car positioning, wireless module, queuing machine, Cabinet, Chassis, Car navigation, Bus stop announcer, Router, etc

Application Areas:   wireless monitoring, smart home, smart transportation, smart city,smart agriculture, wireless modules, etc.

Electrical test report:

Test parameters
Product Name GPS Active Ceramic Antenna
Model No 812
Electrical Specifications
Frequency 1561.098MHz~1575.42MHz
Impedance 50Ω
V.S.W.R ≦1.5
Current 5mA max
Radiation direction  Directional
Gain 18dB typ
Polarization Circular polarization
Power 20W

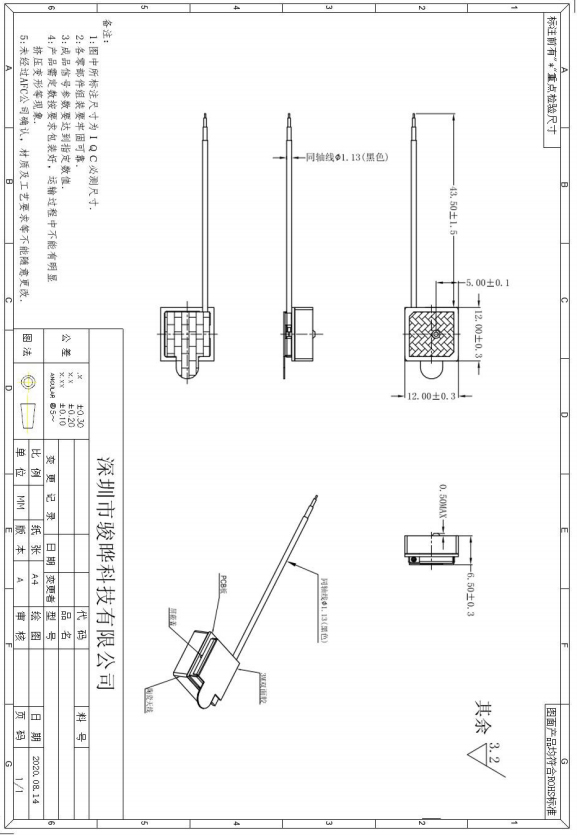

Mechanical Specifications
Dimensions 12mm(L)×12mm(W)×6.5mm(H)
Connector IPEX-I
Cable Length Φ1.13 *L150 mm
Operating temperature -40℃~+85℃
Storage temperature 10% ~ 95% RH

Download Center

812 GPS Specification V1.0 do
