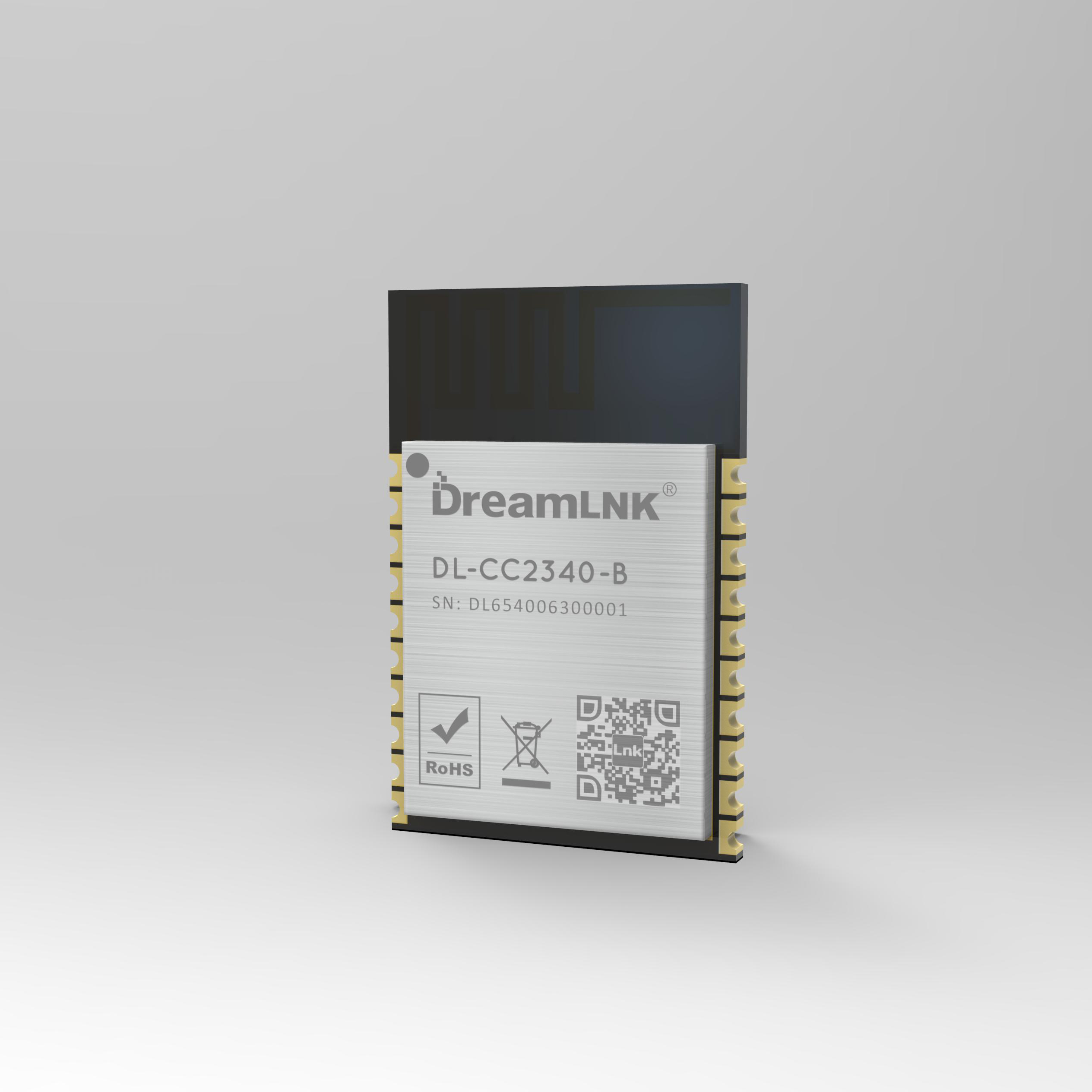

BLE 5.3 Bluetooth Module with TI's SimpleLink™ CC2340R5 Chip
This newly released DL-CC2340-B Bluetooth Module was designed base on TI's SimpleLink™ CC2340R5 Bluetooth® Low Energy Chip, which uses a 48-MHz Cortex-M0+ Kernel, integrates up to 512 KB of flash memory, 36 KB of SRAM, with a built-in 48MHz 10PPM external high-speed clock, and 32.768Khz external low-speed clock.
This Bluetooth Module is compact in size (20PINs, 18*12mm), but has up to 15 universal I/O interfaces. It supports a variety of universal peripherals for all I/O ports of the CC2340R5 chip, which includes UART, SPI, I2C, timer, temperature sensor, battery voltage detection, built-in analog comparator, and 12-bit ADC analog-to-digital converter.
In fact, this DL-CC2340-B BLE module is suitable for use as an UART module, which can come with full-featured firmware (can be called via AT command), and support Peripheral & Central integration. The external MCU can be connected to the BLE module through the UART interface to achieve BLE data transmission. In AT command mode, UART can be used to send commands to modify scan intervals, scan timeouts, connection intervals, broadcast intervals, broadcast custom data, baud rates, etc. The MCU can also send switching commands to the BLE Peripherals through UART, which has broadcast and connection status, and can be connected by the BLE Central, serving as a bridge between the BLE Central and MCU for data transmission.
In addition, to meet the security requirements of Bluetooth, this BLE module also take security issues into consideration, it also has AES-128 encryption and RNG functions. You can use TI’s SDK (CCStudio) for secondary development, and embed its complete applications by yourselves, which means you can purchase it as only a hardware BLE module (without firmware).
In terms of RF performance, these CC2340 BLE modules integrate RF balun internally, with simplified RF design, and reduced power consumption. The typical sensitivity can reach as high as -96.5 dBm @ 1 Mbps, and they can also achieve an output power up to +8 dBm. In order to meet the limit standards for RF power in various countries, the power of the BLE modules can be adjusted (ranging from -21 dBm to+8 dBm).
Features
● Temperature: Working Temperature Range: -40~85ºC, suitable for various applications, even harsh environments
● Transmitting Power: Adjustable range of -21~+8 dBm, in compliant with limit standards for RF power in various countries
● Low Power Consumption: It has a low RX current of 5.3mA, and a standby current of less than 800nA, which can greatly increase the lifespan of the battery.
● Excellent Performance:
-102dBm sensitivity (Bluetooth ® Low Energy 125 kbps)
-96.5dBm sensitivity (Bluetooth ® Low Energy 1 Mbps)
Download Center
DL-CC2340-B Brief Introduction V1.0
DL-CC2340-B UART BLE Transceiver Module DataSheet V1.0
| Hardware Parameters | |
| Model No. | DL-CC2340-A / DL-CC2340-B |
| Dimension | 26.5x18 mm / 18x12 mm |
| Chip Model | TI CC2340R5 |
| Development Method | Secondary Development / AT Command |
| Module Pin QTY | 40 PIN (25 GPIO) / 20 PIN (15 GPIO) |
| Antenna | PCB antenna + IPEX / PCB antenna + external PAD |
| Working Voltage (DC) | 1.75~3.8V |
| Working Temperature | -40 ℃ ~ +85 ℃ |
| Storage Temperature | -40 ℃ ~ +85 ℃ |
| Wireless Characteristics | |
| Bluetooth Version | Bluetooth 5.3 supported |
| Frequency Range | 2402-2480 MHz (2.4G ISM radio band) |
Modulation Mode | GFSK |
| Transmission Power | -21 dBm ~ +8 dBm (can be programed via software) |
| Receiving Sensitivity | 96 dBm (typical value @ 1 Mbps) |
| Transparent Mode | Central / Peripheral |
| Communication Range | 70 meters (open area) |
| Power Consumption Parameters | |
| Active-Mode RX | 5.3 mA |
| Active-mode TX | 5mA @ 0dB 12mA @ +8dBm |
Sleep State | sleep state 0.7-µA avg (RTC running and RAM/CPU holding) |
| Running | 2.6mA active mode |
| Data Transmission | to be updated |
| Software Parameters | |
| Supported Protocols | • Bluetooth® 5.3 Low Energy • Zigbee® 1 • SimpleLink™ TI 15.4-stack 1 |
| OTA | available |
Peripheral & Central | Peripheral & Central |

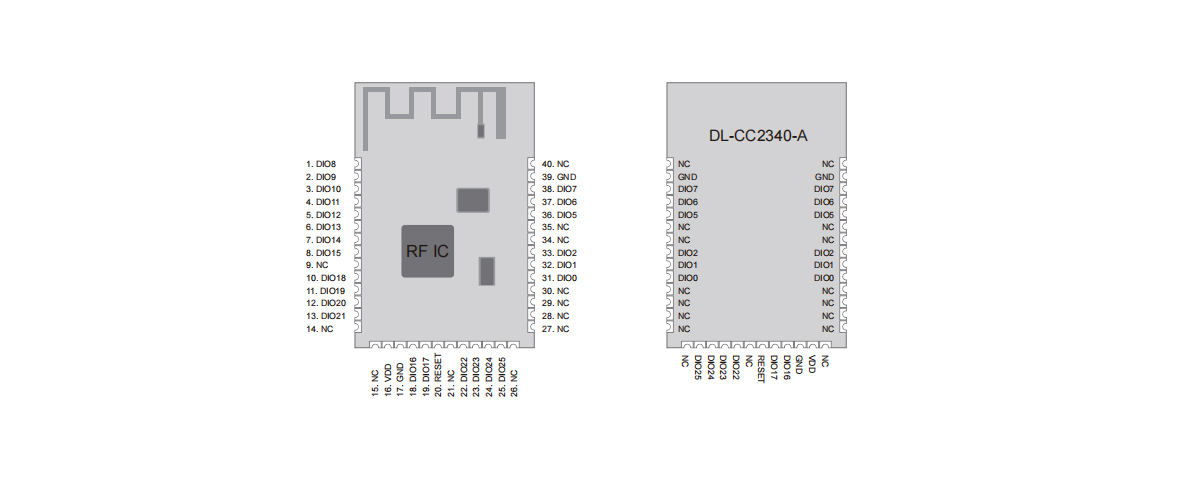

Pin Definitions
DL-CC2340-B
DL-CC2340-A
| No | PIN | Type | Description |
| 1 | DIO8 | Digital | GPIO |
| 2 | DIO9 | Digital | GPIO |
| 3 | DIO10 | Digital | GPIO |
| 4 | DIO11 | Digital | GPIO |
| 5 | DIO12 | Digital | GPIO |
| 6 | DIO13 | Digital | GPIO |
| 7 | DIO14 | Digital | GPIO |
8 | DIO15 | Digital | GPIO |
| 10 | DIO18 | Digital | GPIO |
| 11 | DIO19 | Digital | GPIO |
| 12 | DIO20 | Digital or Analog | GPIO，analog capability |
| 13 | DIO21 | Digital or Analog | GPIO，analog capability |
| 16 | VDD | Power | 1.8V to 3.8V DIO supply |
| 17 | GND | Power | Ground |
| 18 | DIO16 | Digital | GPIO, SWD interface: mode select or SWDIO, high-drive capability |
| 19 | DIO17 | Digital | GPIO,SWD interface: mode select or SWDIO,high-drive capability |
| 20 | RESET | Digital | Reset, active low. No internal pullupresistor |
| 22 | DIO22 | Digital or Analog | GPIO, analog capability |
| 23 | DIO23 | Digital or Analog | GPIO, analog capability |
| 24 | DIO24 | Digital or Analog | GPIO, analog capability |
| 25 | DIO25 | Digital or Analog | GPIO, analog capability |
| 31 | DIO0 | Digital or Analog | GPIO, analog capability |
| 32 | DIO1 | Digital or Analog | GPIO, analog capability |
| 33 | DIO2 | Digital or Analog | GPIO, analog capability |
| 36 | DIO5 | Digital or Analog | GPIO, analog capability |
| 37 | DIO6 | Digital or Analog | GPIO, analog capability |
| 38 | DIO7 | Digital or Analog | GPIO, analog capability |
| 39 | GND | Power | GPIO, analog capability |
9. NC 14.NC 15. NC 21.NC 26. NC 27.NC 8. NC 29.NC 30. NC 34.NC 35. NC 40.NC | NC | NC |

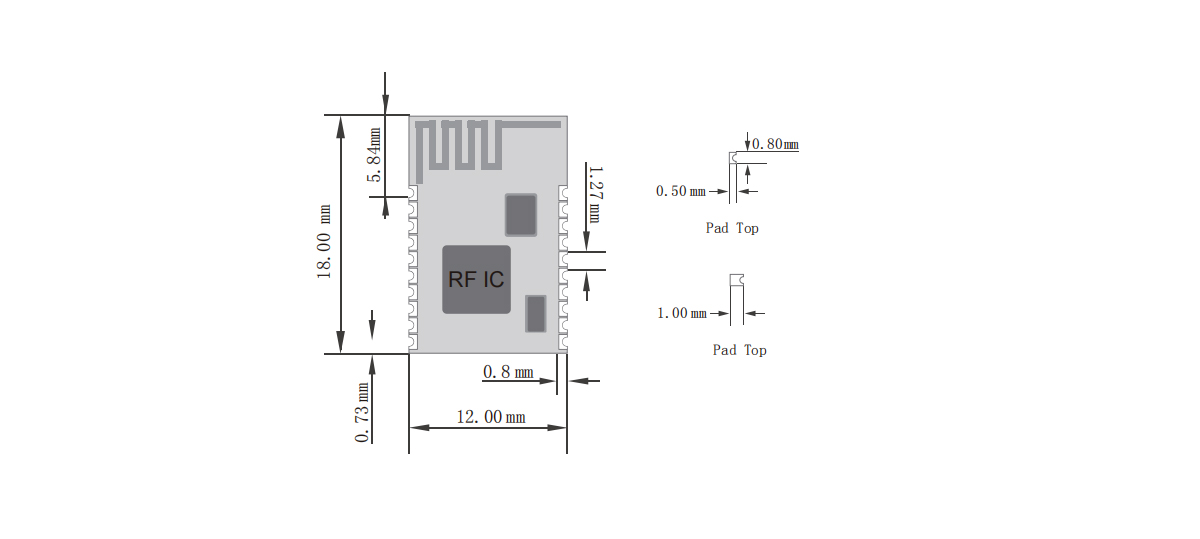

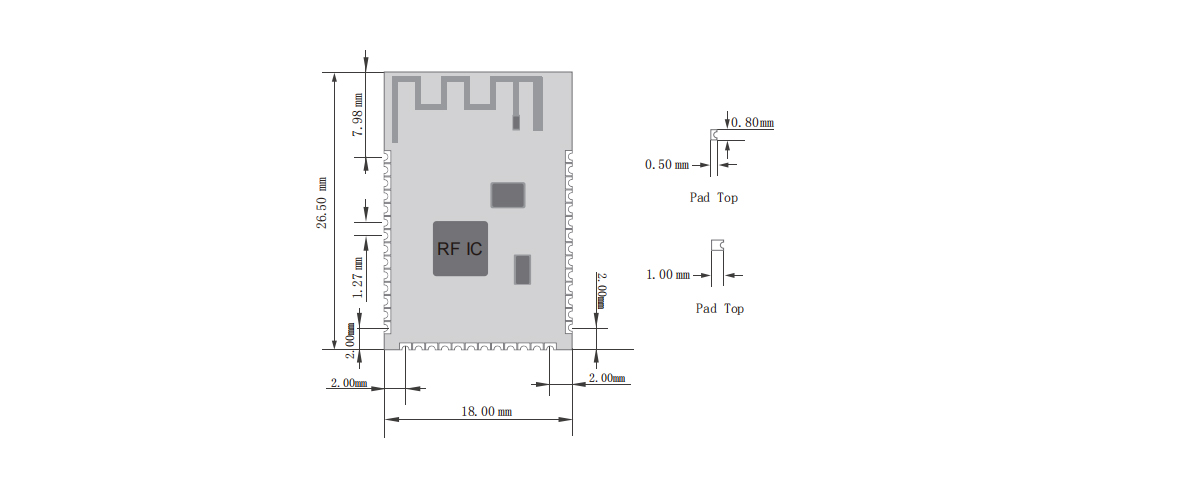

Module Size
DL-CC2340-B
DL-CC2340-A

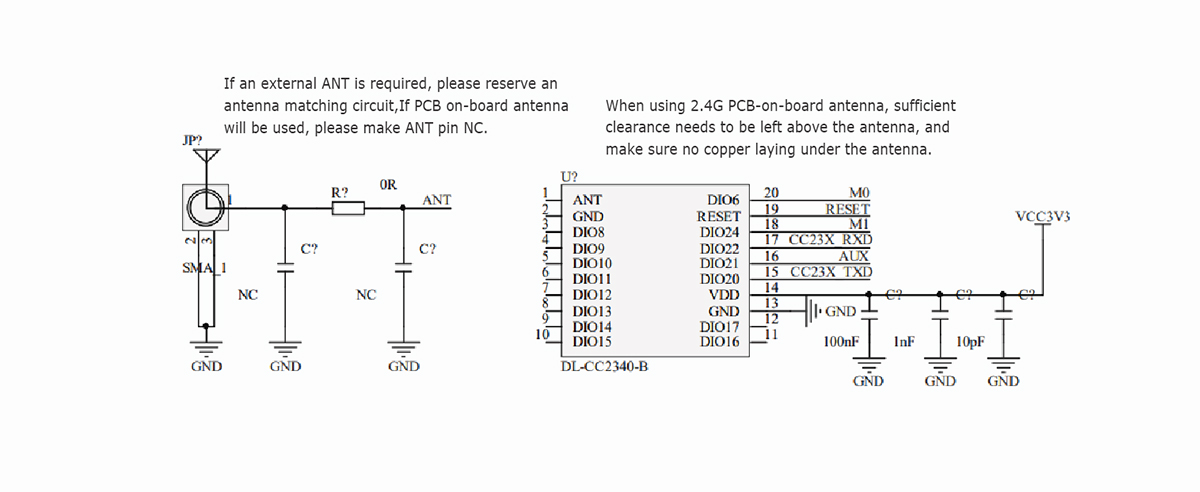

Application Connection Diagram
Typical Applications:
Sports & Health: Activity Tracker, Pedometers, Sports Measurement (running, cycling, golf), etc.
Smart Home: Socket Improvement, Remote Control Switch, Smart Lighting, Smart Locks, Smart Curtains, Thermometer and Hygrometer, Smart Scale, Environmental Monitoring, Smart Detector, Pet Supervision, etc.
Health and Medical: Medical Detection/Tracking (heart rate, blood pressure, blood oxygen, pulse, body temperature), Blood Glucose Monitoring, Insulin Pump, Medical Sensor Patch
Infant Care: Real-time Temperature Detection, Smart Crib, Anti-lost
Toys: Interactive Remote-control Toys, Robots, Aircraft, Toy cars, Anti-lost devices
Vehicle Electronics: Tire Pressure Monitoring System (TPMS), Automatic Car Lock, Parking Record, Electric Vehicle Anti-theft Device, Data Collection and Monitoring
Automation: Beacons, Electronic Labels, Asset Management, Cold Chain Logistics, Industrial Control,Electronic Shelf Label, Electronic Sales Terminals
Smart Building: Building Security, HVAC, Lighting
Personal Care: Electric Toothbrush, Electric Shaver, Facial Cleanser
Games, Remote Control: Game Controllers, Voice Remote Control, Toys
Electronic Product: Keyboard/Mouse (non-USB type), Printer, Storage
