PAN1070 Chip Based BLE 5.3 Module / Bluetooth Mesh Module / Bluetooth Module

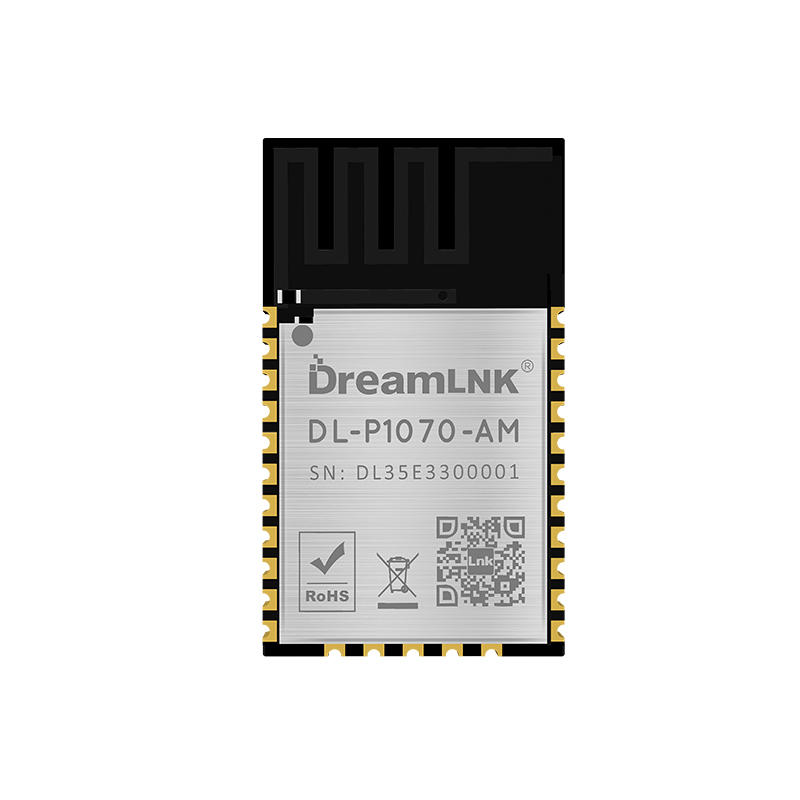

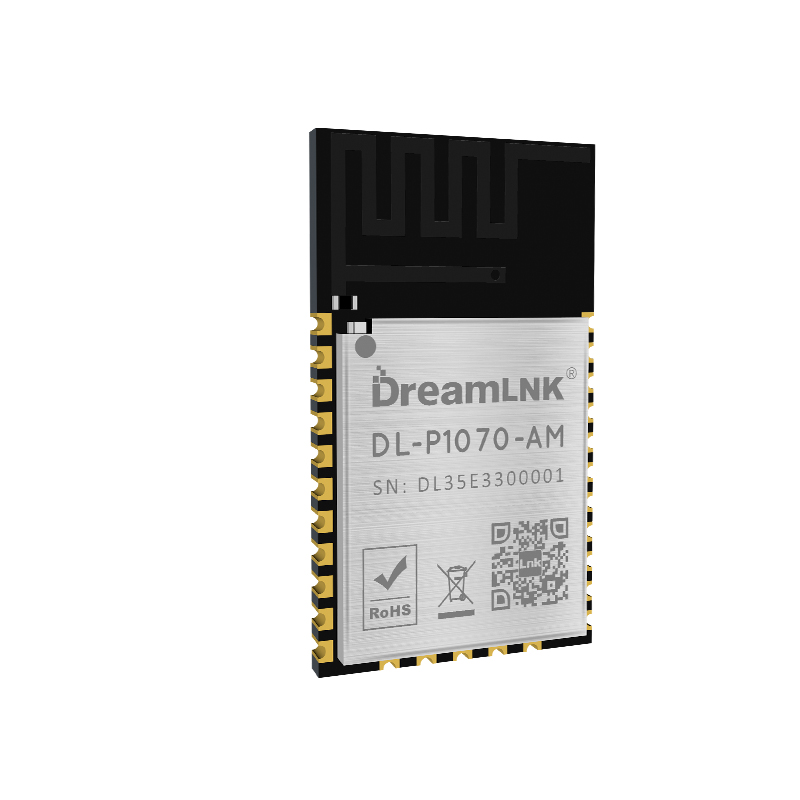

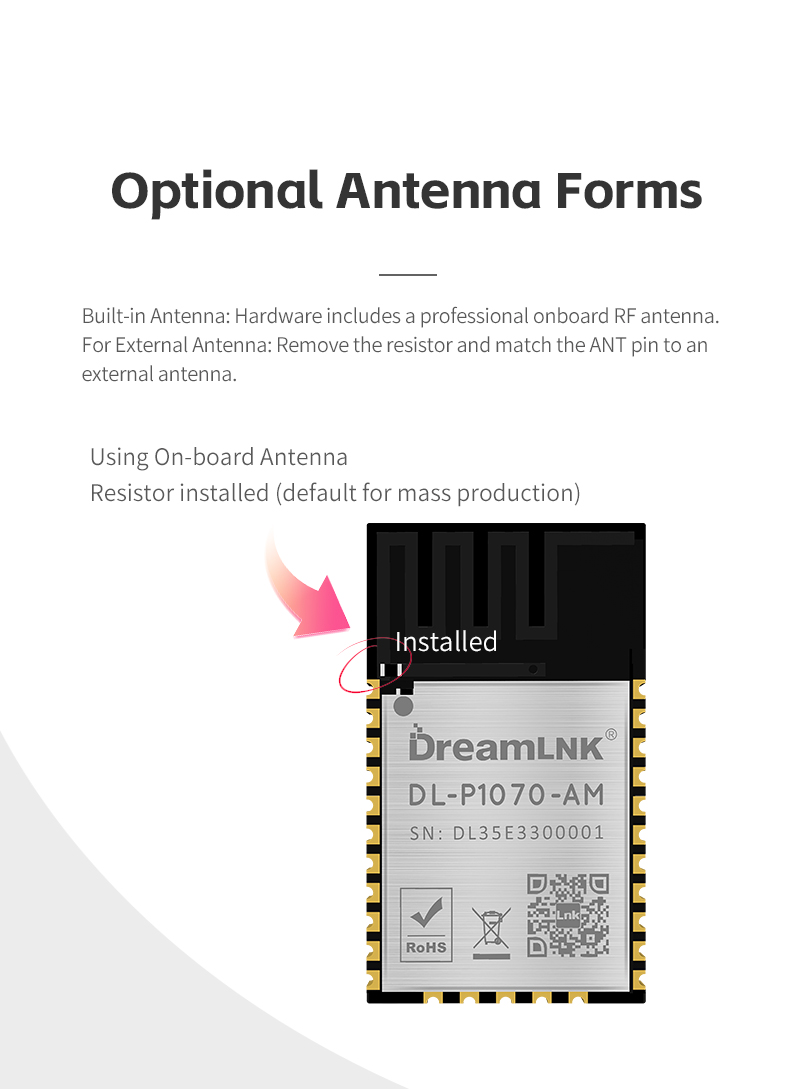

The DL-P1070-AM is a BLE Module designed base on the PAN1070 series of low-power Bluetooth chips (supporting dual-mode BLE 5.3 and2.4GHz). It features a compact design and powerful functionality, with a small size that makes it suitable for various space-constrained application scenarios. The DL-P1070-AM offers up to 19 GPIO pins and multiple communication interfaces, including UART, SPI, and I2C, providing users with flexible configuration options for practical applications.

Equipped with a 48MHz Cortex-M0+ core, 512KB Flash, and 48KB SRAM, the DL-P1070-AM provides ample storage for complex applications. The module supports deep sleep mode, with standby power consumption as low as 0.3μA, making it ideal for devices requiring long battery life, such as Smart Home devices, Electronic Shelf Labels (ESL), and wireless Mouse/Keyboards.

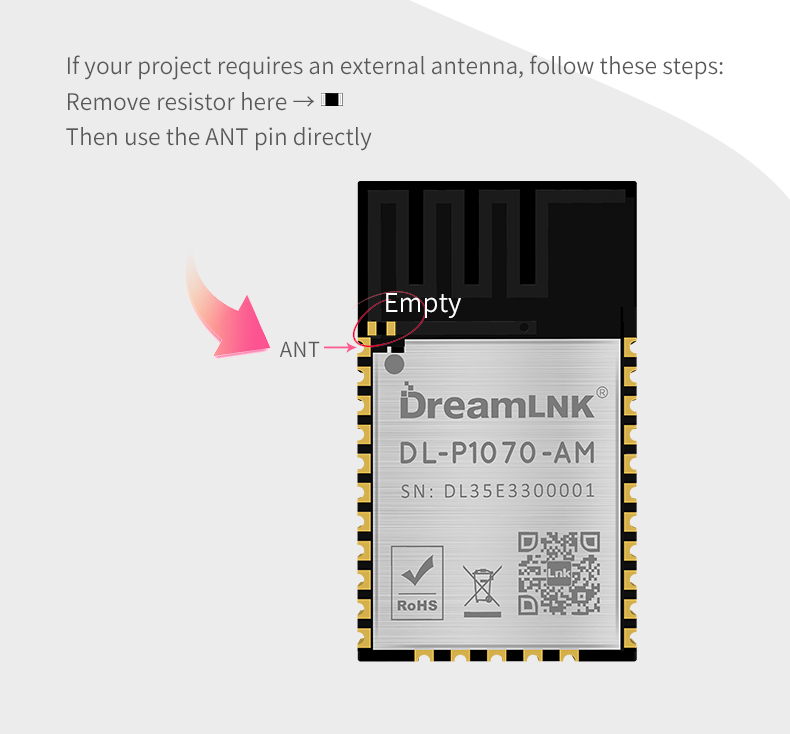

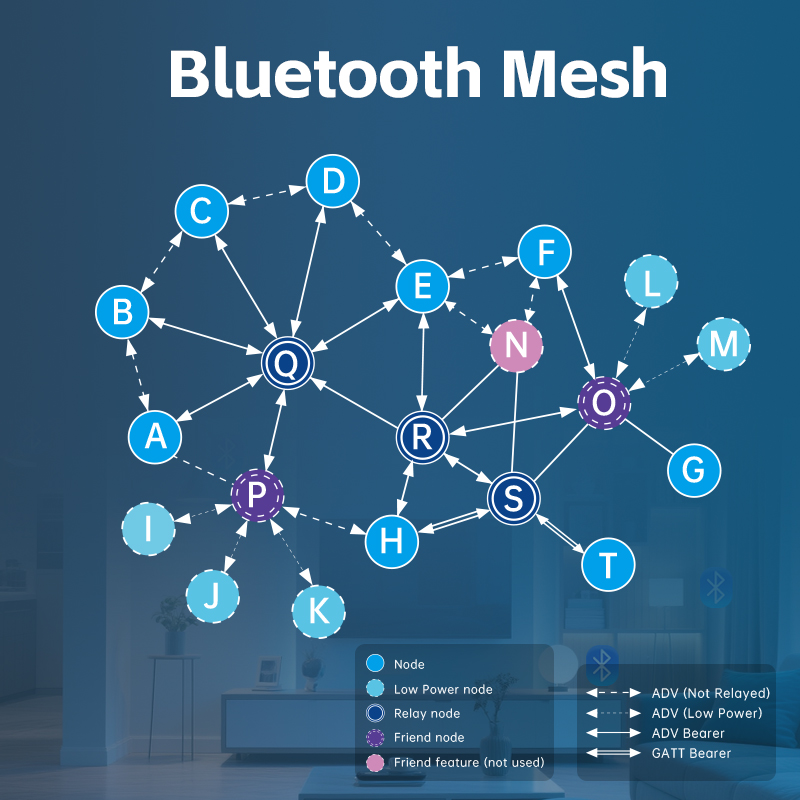

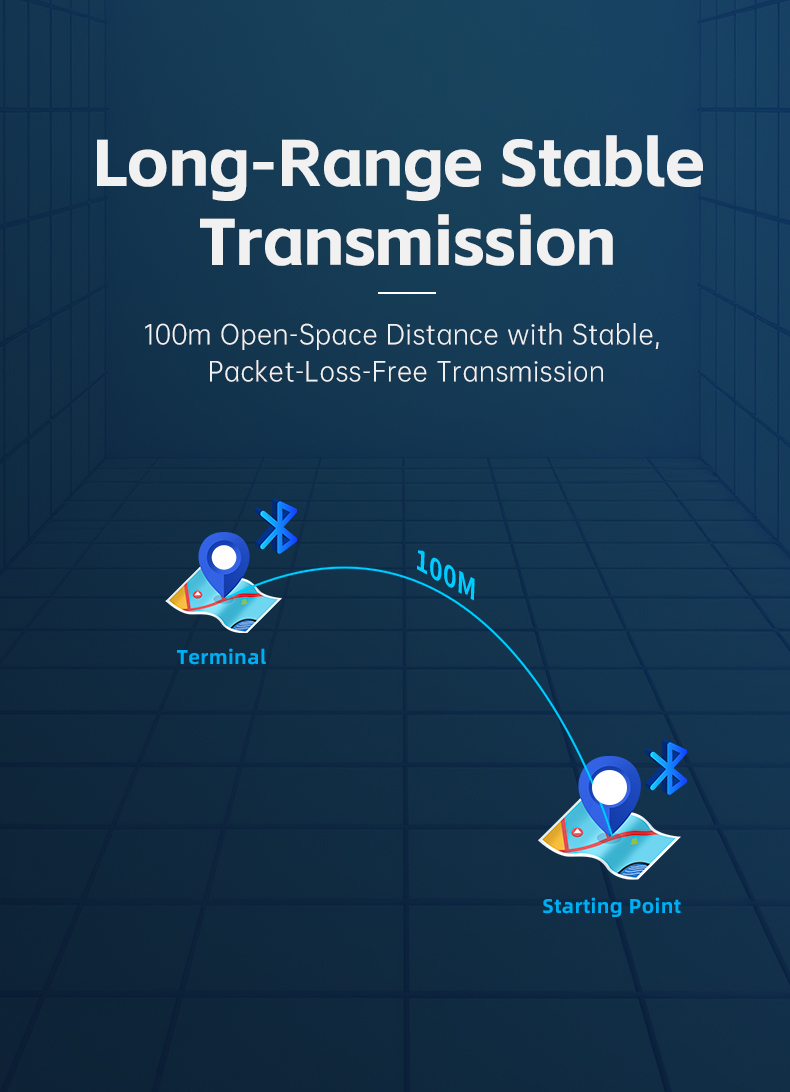

In terms of performance, its optimized RF capabilities enable a receiving sensitivity of up to -99dBm, and the adjustable transmit power of up to+9dBm ensures stable and reliable Bluetooth connections in various environments. When the receiving current is 2.5mA and the transmitting power is 0dBm, the module only consumes 8mA, its ultra-low power consumption design is well-suited for low-power applications. Moreover, this DL-P070-AM wireless module supports various data transmission modes of BLE 5.3, offering flexible data transfer capabilities. Additionally, the DL-P1070-AM is compatible with Bluetooth Mesh networking, enabling multi-device interconnection and smart control, and can work alongside other smart devices such as Smart Speakers to create richer application scenarios.

For secondary development, the Keil MDK integrated development environment (IDE) is used, with versions between MDK v5.25 and v5.36 recommended. Programs are debugged and flashed via J-Link SWD. A Python3 environment is required on the PC, with Python 3.8 or higher version is recommended, as the example programs invoke Post Build scripts after compilation to implement special functions.

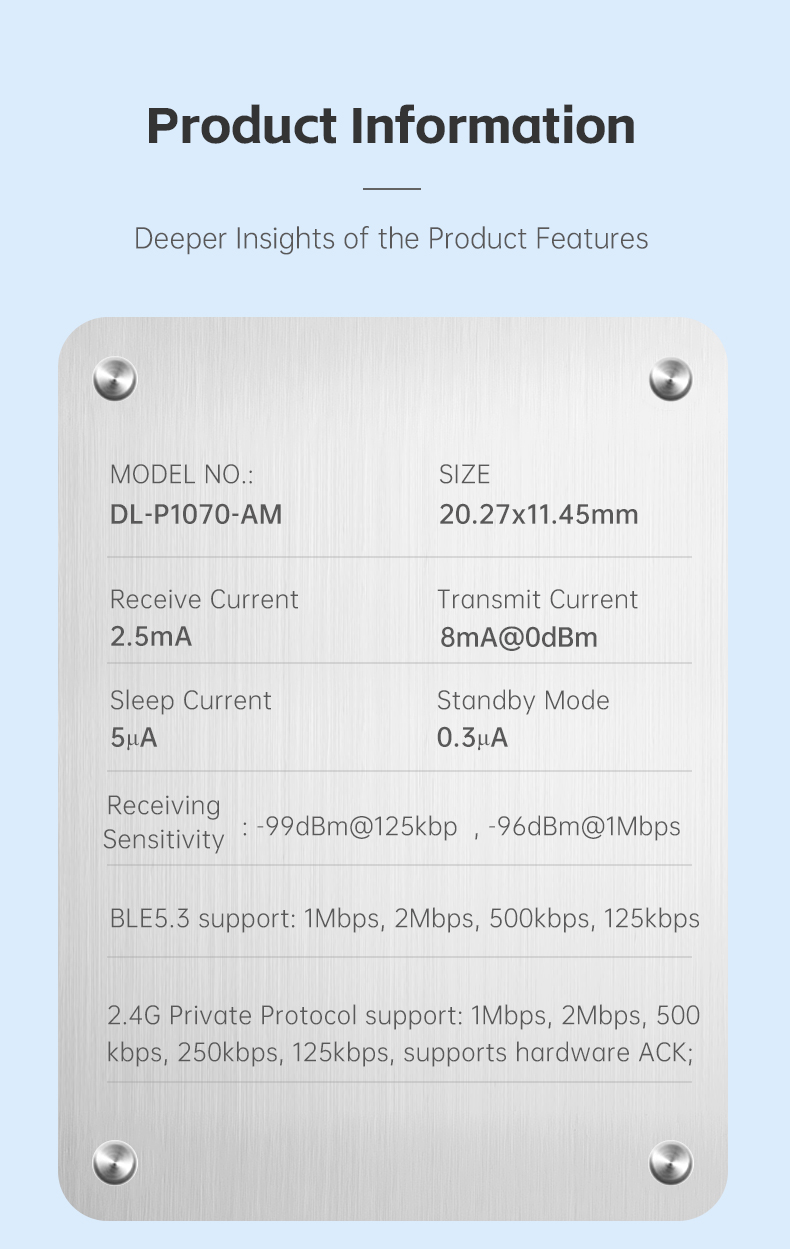

Main Features:

✅  Working Voltage: 1.8-3.6V;

✅  Operating Frequency Band: BLE 2.4GHz;

✅  Maximum Output Transmission Power: +9dBm;

✅  Receiving Current: 2.5mA;

✅  Sleep Current: 5uA;

✅  Receiving Sensitivity: -99dBm@125kbp, -96dBm@1Mbps  ；

✅  BLE5.3 support: 1Mbps, 2Mbps, 500kbps, 125kbps;

✅  2.4G Private Protocol support: 1Mbps, 2Mbps, 500kbps, 250kbps, 125kbps, supports hardware ACK;

✅  Physical Layer: LE 1M PHY, LE 2M PHY, and Coded PHY (S2 and S8);

✅  Support LE function, compatible with Bluetooth SIG Mesh;

✅  Support Human Interface Devices (HID);

✅  Support multiple connections;

• Parameter	Min.	Typical	Max.	Unit	Remark
  Operating Conditions
  Working Voltage (VDD)	1.8	3.3	3.6	V	Unable to output Max. power when the power supply voltage is below 3.0V
  Communication Level	-0.3	3.3	3.6	V	Exceeding this range may damage the RF chip
  Working Temperature	-40	25	85	℃	The larger the temperature difference, the greater the required bandwidth
  Current Consumption
  RX Current (Radio+MCU)	2	2.5	3	mA
  TX Current (Radio+MCU)		5.8 8 20		mA	@ -10dbm @ 0dbm @ +9dbm
  Sleep Current	0.3	5	10	uA
  RF Parameters
  Recommended Frequency (Ensure best performance)	2400		2483	MHz	2.4G ISM Frequency Band
  Transmission Power Range	-40	0	9	dBm
  Sensitivity		-99 -96 -93		dBm	@ 125 kbps @ 1 Mbps @ 2 Mbps

•


Applications：

● Smart Wearable Devices                 ● LED Light Control

● Smart Home System                       ● Intelligent Security Monitoring

● Vehicle Mounted Equipment           ● Wireless Mouse and Keyboard

● Electronic Shelf Labels (ESL)          ● Intelligent Parking System

● Health Monitoring                          ● Thermal Energy Collection, Meter Measurement

Download Center

DL-P1070-AM Specification V1.0

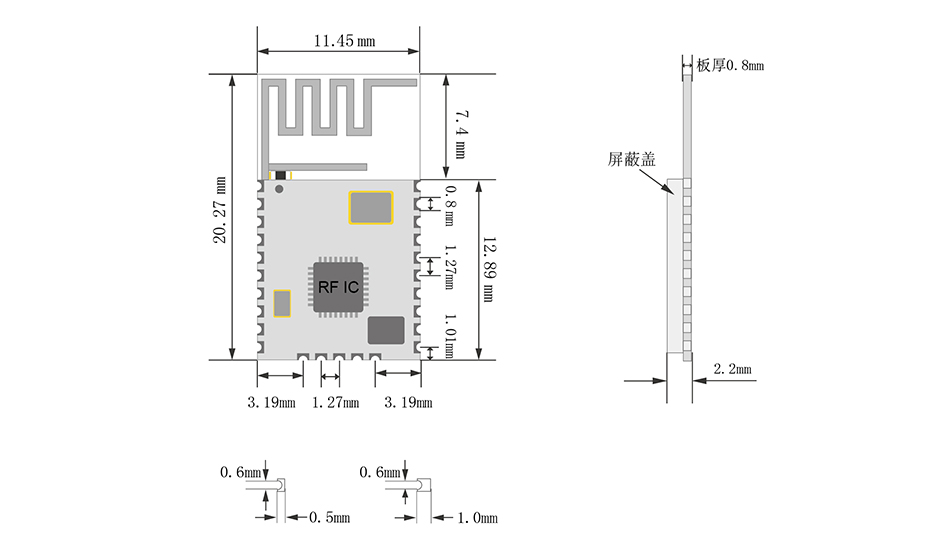

Product Size:

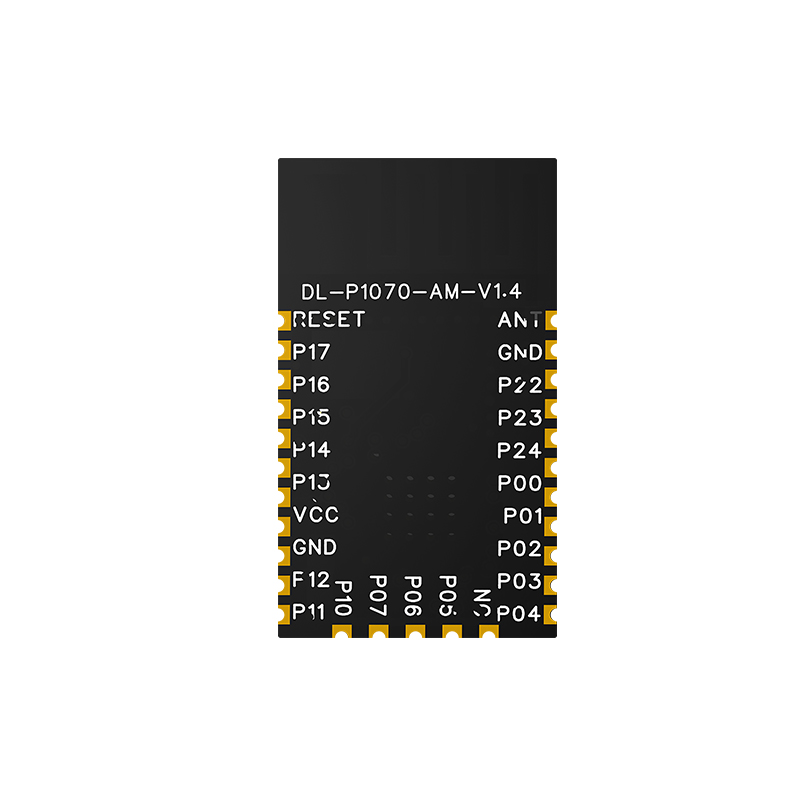

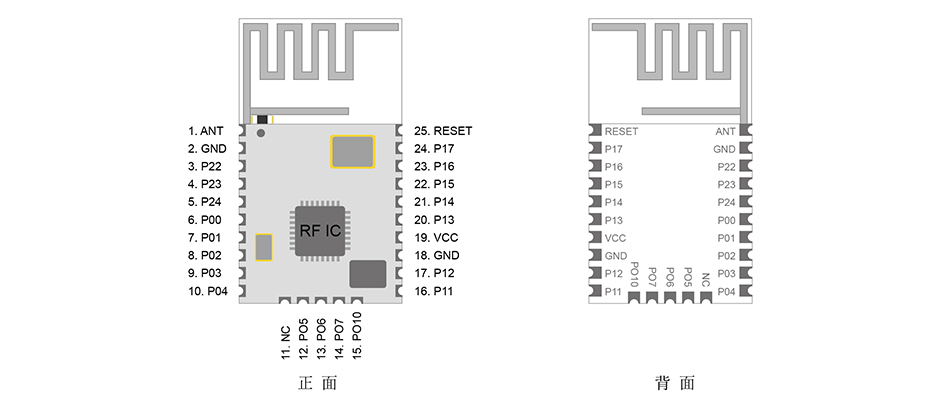

Pin Diagram:
