DL-RXP4302
433/315 MHz
RXP4302
2.4~5.5V
-110~-112dBm
300m
20*10*5mm

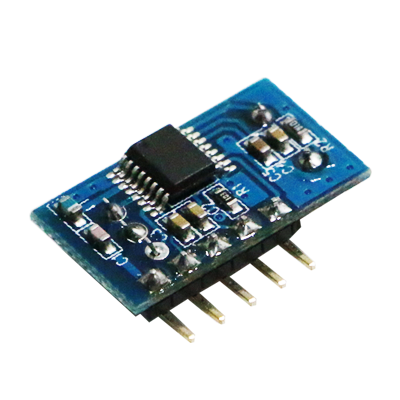

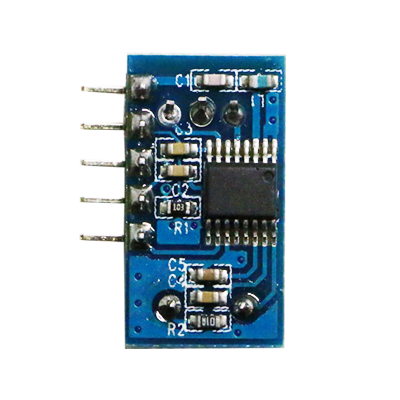

Sub-1GHz Micro-power Wireless RF Receiver Module
DL-RXP4302 is a compact and micro-power Sub-1Ghz RF Modules based on the high-performance ASK wireless superheterodyne receiver chip. It has high stability, strong anti-interference and simple peripheral circuit. At the same time, it also has a strong driving force, which can directly drive the standard decoding chip or the decoding master chip.
This DL-RXP4302 RF receiving module strives to solve the problems of low power consumption and remote control in the process of product development, which uses the external crystal as the local oscillator, no longer uses the high cost acoustic meter resonator, and has good mass production consistency. It can be directly applied to your wireless products, or a variety of embedded applications, to avoid tedious high-frequency performance debugging and effectively shorten the development cycle.
The application frequency of this RF receiver module is typically 315MHz, 433.92mhz, but we also can customize the special frequency 390MHz for you. The normal receiving power consumption of this module is the lowest in the same kind of superheterodyne receiving scheme, and can pass the European/American radio safety test.
Features
● 300m transmission distance in an open air (1200bps)
● Working frequency: 315M, 433.92M (390MHz can be customized)
● Ultra-wide operating voltage range: 2.4V-5.5V
● CE interface enables to control the sleep / wake-up state of the module
● The average power consumption of wake-up mode is less than 500uA
● Standby current of less than 0.1uA (in sleep state)
● Optional R25 discrete or PT4450 transmit system
Download Center
Technical Parameter
DC characteristics
| Description | Min. | Max. | Unit |
| Supply voltage | 2.4 | 5.5 | V |
| Working current | 2.7 | 3 | mA |
| Standby current | ＜2uA | mA | |
| Wake up time | 5.6 | 8 | mS |
| Low power settings | 230 | 500 | uA |
RF characteristics (Unless otherwise stated, the temperature is 25 ℃, and VCC is 3.3V)
| Parameter | Characteristics | Reference Value Min. Typ. Max. | Unit | ||
| 1 | Frequency range | 300，315/433 ，450 | MHz | ||
| 2 | Antenna signal input peak value | — ,— ,-25 | dBm | ||
| 3 | Receive sensitivity | -107 ,— ,-112 | dBm | ||
| 4 | Data baud rate | 0.5 ,1.2 ,20 | Kbps | ||
5 | LNA Gain | 12,— ,15 | dB | ||
| 6 | CE enable wake up time | 2.0 ,— ,6 | ms | ||
| 7 | Noise figure (NF) | — ,— ,-3.6 | dB | ||
| 8 | PLL frequency range | 220 ,— ,550 | MHz | ||
| 9 | IF bandwidth (RBW) | — ,280 ,— | KHz | ||
| 10 | RSSI signal detection strength | — ,75,— | uA | ||
| 11 | Standby power consumption | — ,2 ,— | uA | ||
| 12 | Crystal accuracy | 20,—,10 | PPM | ||
Pin Definitions
The DL-RXP4302 module has 5 pins, which are defined in the following table
| Pin | Name | Description | Remark |
| 1 | ANT | Antenna input, single core copper wire is recommended | ＞0.8mmф |
| 2 | DATA | Data output, connected with decoding chip or MCU | |
| 3 | CE | Receive high level enable, sleep / wake up control | 5~8 mS |
| 4 | GND | Grounding, common ground with the system | |
| 5 | VDD | Power supply, 3.3V or 5.0V is recommended |
Size
Typical application
Wireless Data Acquisition, Wireless Data Communication, Wireless Data Monitoring and Transmission, Wireless Voice/Audio Transmission, Wireless Sensoring; Wireless Remote Control System; Wireless Game Controller, Remote Control Toys; Wireless Keyboard, Wireless Mouse; Wireless remote control for electronic consumer products; Wireless Alarm & Security Control System; Wireless Sensor Networking, Automatic Data Collection; Industrial Remote Control, Intelligent Control System, Smart Home, Home Automation, Home Appliance Control, Building and Residential (smart home) Control, Smart City, Logistics Tracking, Warehouse Patrols, RFID (radio frequency identification); Telemetry, Automatic (Water, Electricity, Gas) Meter Reading system; Remote LED, Remote Curtain; Remote control that supports radio frequency (RF) technology
