DL-RXP4303
433/315 MHz
RXP4303
2.7mA
2.4~5.5V
-110dBm
300m
21.5*12.2*5mm

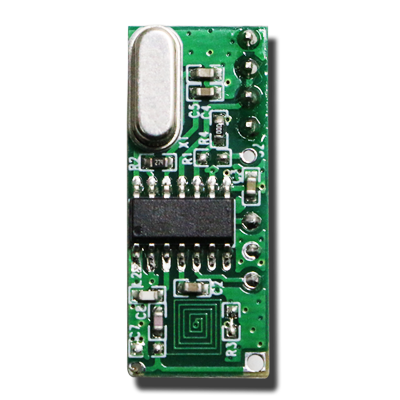

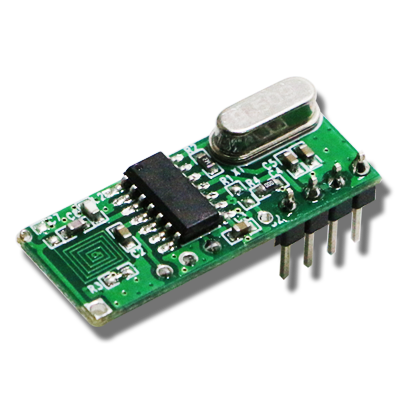

High Sensitivity Sub-1GHz ASK Modulation RF Receiver Module
DL-RXP4303 is a cost-efficient single chip wireless ASK receiving module, it is the most classic ASK receiving module in our Sub-1GHz RF Module products, mainly competed with the super-regenerative modules, with all the functions of high-end RF modules, and performs a very high receiving sensitivity. The sensitivity can reach -114 dBm under 3.3V @ 315MHz, which greatly increases the receiving distance.
At the same time, this model has a higher integration, with high frequency signal reception functionsall on chip.
Features
● Complete single chip UHF receiver with frequency range of 250-500 MHz
● Operating frequency: 433.92m, 315m (other frequencies can be customized)
● Receiving sensitivity at noise-free mode: - 96dbm (315MHz), - 96dbm (433MHz) - factory defaulted
● Receiving sensitivity at noise mode: -110dbm (315MHz), -110dbm (433MHz)
● Transmission rate: 10kbps (max), fixed automatic tuning
● No need for manual adjustment, and no external adjustable inductance/detector needed
● Working power: 2.7Ma (315MHz, full operation); 1μA (shutdown mode)
● Transmission distance: 300m in an open air (1200BPS)
● Working voltage: 2.4V-5.5V
● Independent 64 byte RXFIFO and TX FIFO
● Single serial port data transmission interface;
Download Center
Technical Parameter
DC characteristics
| Description | Min. | Typi. | Max. | Unit |
| Supply voltage | 2.4 | 5.5 | V | |
| Working current | 2.7 | mA | ||
| Standby current | 1 | uA |
DC characteristics of the Module
RF characteristics (Unless otherwise stated, the temperature is 25 ℃, and VCC is 3.3V)
| Parameter | Characteristics | Reference Value Min. Typ. Max. | Unit | ||
| 1 | Frequency range | 250，315/433 ，500 | MHz | ||
| 2 | Antenna signal input peak value | -20 ,-10 ,— | dBm | ||
| 3 | Receive sensitivity | — ,-110,— | dBm | ||
| 4 | noise-free mode | — ,-96,— | dBm | ||
5 | Transmission rate | — ,2.5, ,10 | Kbps | ||
| 6 | IF bandwidth (RBW) | 180 | kHz | ||
| 7 | 10:1 duty ratio | 250 | kHz | ||
| 8 | Receiving current | 2.7 | mA | ||
| 9 | Standby current (No CE pin as default,customizable) | 1 | uA | ||

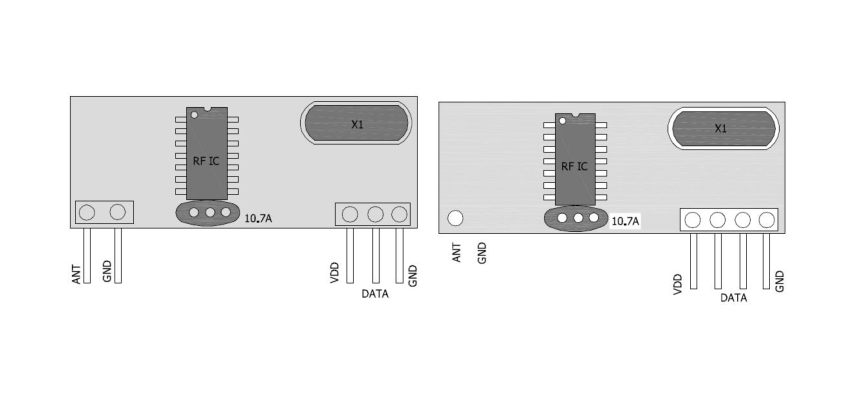

Pin Definitions
| Pin | Name | Description | Remark |
| 1 | ANT | Antenna input, single core copper wire is recommended | ＞0.8mmф |
| 2 | DATA | Grounding, common ground with the system | |
| 3 | VDD | Power supply | |
| 4 | DATA | Data output, connected with decoding chip or MCU | |
| 5 | GND | Grounding, common ground with the system | Strong current isola |

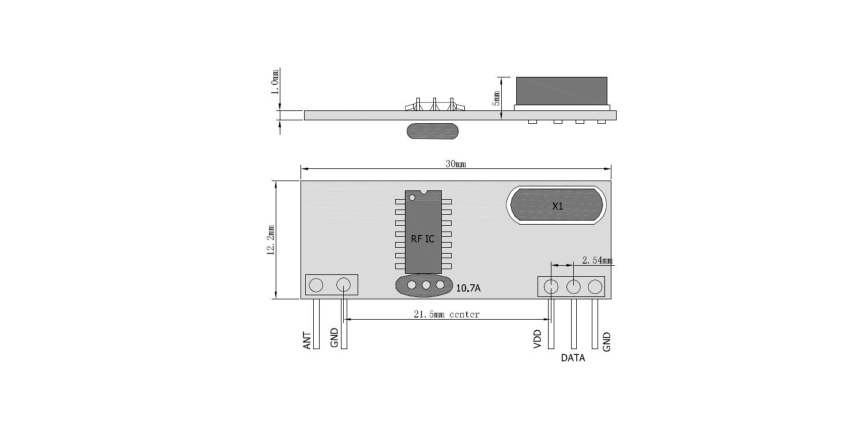

Size
Typical application
Wireless Data Acquisition, Wireless Data Communication, Wireless Data Monitoring and Transmission, Wireless Sensoring; Wireless Remote Control System; Wireless remote control for electronic consumer products; Wireless Alarm & Security Control System; Wireless Sensor Networking, Automatic Data Collection; Industrial Remote Control, Intelligent Control System, Smart Home, Home Automation, Home Appliance Control, Building and Residential Control, Smart City, Logistics Tracking, RFID (radio frequency identification); Telemetry, Automatic Meter Reading system (Water, Electricity, Gas); Remote control that supports radio frequency (RF) technology
