SMA-KE-P901
| Quantity: | |
|---|---|
Product Description:
SMA-KE-P901 is a kind of coaxial SMA Connector with male straight head (180 Degrees) and external screw. It adopt UK standard threaded connection for high strength and good shock resistance. The central conductor and insulator of this SMA connectors are usually captured to obtain a sufficiently low VSWR. The end of the outer conductor contacts directly to minimize the insertion loss.
Compared with other types of connectors, the SMA series connectors have the characteristics of small size and low VSWR. They will still have good electrical performance even at 18 Ghz, with appropriate cables; and these special processed SMA connector can be used up to 25Ghz.
SMA series products have long lifespan, superior performance and high reliability. They are widely used to connect radio frequency coaxial cable or microstrip in the radio frequency circuit of microwave devices and digital communication devices.
Features
Material: 100% copper, environmentally friendly, good shielding effect, not easy to blacken
Surface Treatment: authentic gold plating, antioxidant, corrosion resistance, increased conductivity, low loss.
Download Center
SMA-KE-P901 Specification V1.0
Technical Parameter
Model No. | SMA-KE-P901 |
Material | brass with gold-plated surface |
SMA-KE male straight head (180 degrees) - external screw type, internal pin, half thread – P type offset 4 feet | |
Electrical Characteristics
Impedance | 50 Ohm | Insulation Resistance | 5000 Mohm |
Working Frequency | DC-3 GHz | Contact Resistance | Center contact: 3 Mohm |
S.W.R. | ≤1.5 | External contact | ≤2 Mohm |
Working Voltage | 335V/ Max | Operating Temperature Range | -55°C ~ +125°C |

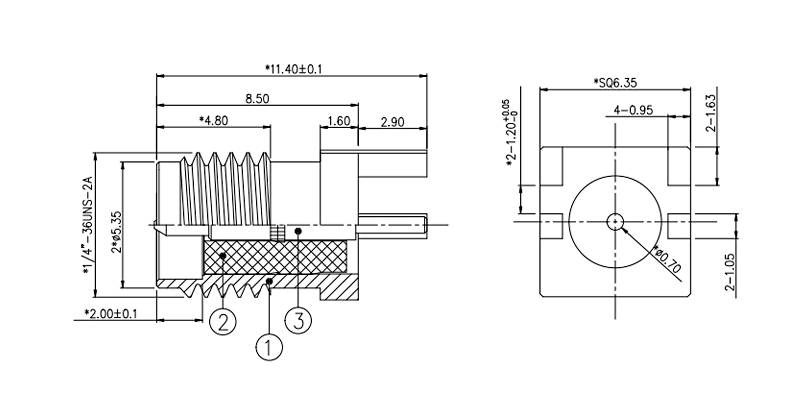

Size
Applications:
Low Frequency Applications:
Animal husbandry management system; Anti-theft of automobiles, Keyless Entry System; Marathon running system; Smart parking and vehicle management system; Automatic refueling system; Smart hotel system; Access control and safety management system.
High frequency applications:
Book management system; Liquefied gas cylinders; Garment production line, Logistics system; Water/Gas/Electricity meters; Access control system; Medical logistics system; Intelligent shelves.
VHF applications:
Supply Chain Management; Automated production lines; Logistics management; Containers management; Application of large-scale personnel access management.
F.A.Q.
Welcome to contact us, and we'll be patient to answer your questions.
SMA？What is SMA?
The full name of SMA is Small A Type, also known as SMA connector or SMA interface. It is suitable for microwave applications in frequency range up to 26.5 GHz. SMA interface has wide bandwidth, excellent performance, high reliability and long lifespan. It is a radio frequency and microwave connector that is widely used in telecommunication, networking, wireless communication, detection and measurement instruments.
How should I recognize SMA Male and SMA Female heads? How to differ Male and Female needles?
There are many kinds of SMAs, one is called SMA, the other is RP-SMA.
The difference between them is:
The standard SMA is "inner thread + needle", "outer thread + hole"
1. Positive SMA Male head + Male needle (SMA-J, or SMA Male)
2. Positive SMA Female head + Female needle (SMA-K, or SMA Female)
RP-SMA is "inner thread + hole", "outer thread + needle "
3. Reverse SMA Male head + Female needle (RP-SMA-J or RP-SMA Male)
4. Reverse SMA Female head + Male needle (RP-SMA-K or RP-SMA Female)
