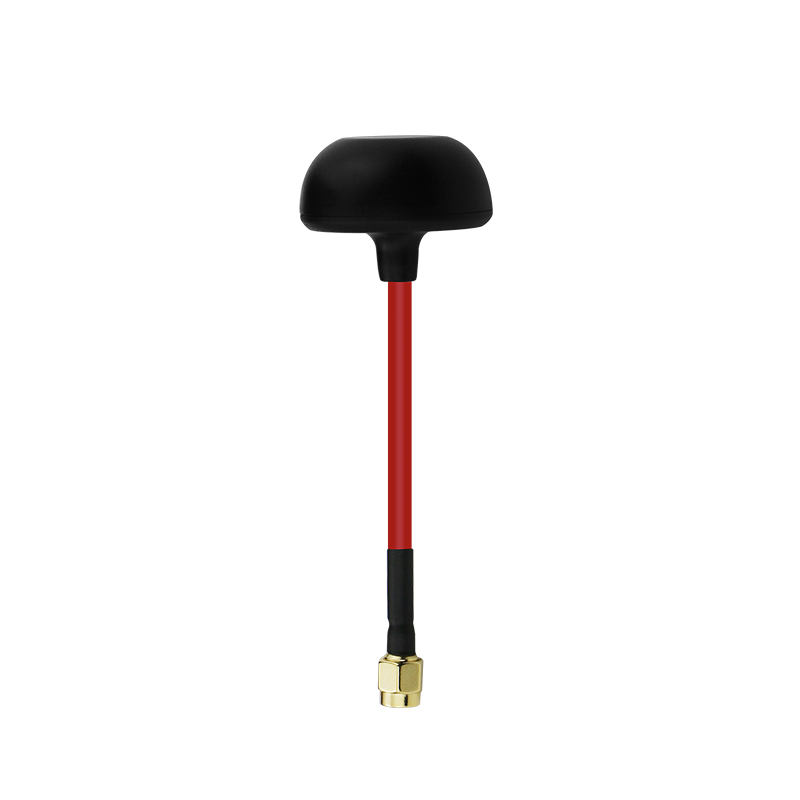

Umbrella-shaped 5.8Ghz Antenna for Aerial Photography Use

Mini Mushroom Shape Omnidirectional High Gain Antenna for Image Transmission, Mini Mushroom Antenna for Aerial Photography Use
  • DL-ANT-G58F02

  • 5.15~5.85GHz

  • 10W

  • 104.5*35mm

Availability:

FPV Drone Aerial Photography

Umbrella Shape Omnidirectional High Gain Antenna for Image Transmission,Mini Mushroom Antenna for Aerial Photography


Parameters

Test parameters
Product Name 5.8G Umbrella-shaped Antenna Model No DL-ANT-G58F02
Electrical Specifications
Frequency Range 5.15~5.85GHz Polarization Vertical
Input Impedance 50Ω Radiation direction Omni-directional
VSWR 2.0 Max Power 10W
Gain 3.5 dBi Return Loss -8.0dB MAX
Mechanical Specifications
Dimensions 104.5*35mm Color Black
Connector Model RP-SMA-J Cable Length RG141, L=78mm
Antenna Material ABS + Copper Storage Temp. 40~ +85
Working Temperature -40℃ ~ +80℃ Relative Humidity 40~85%


Download Center

DL-ANT-G58F02 Specification V1.0 do

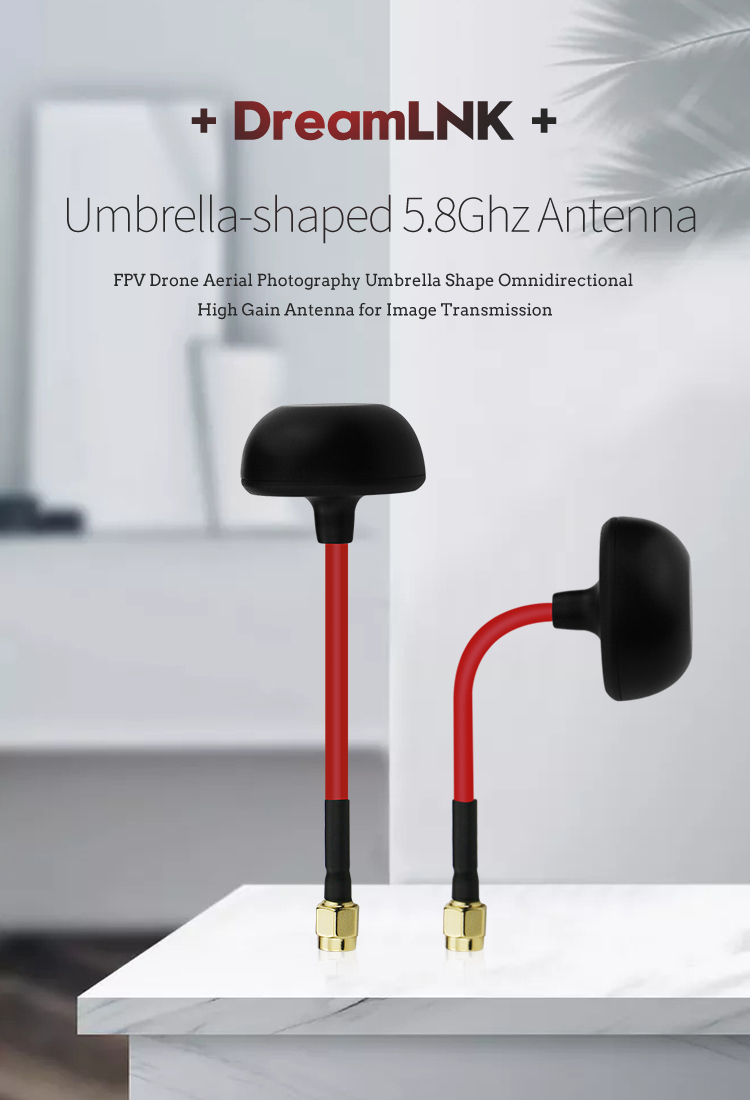

Umbrella-shaped-5_01

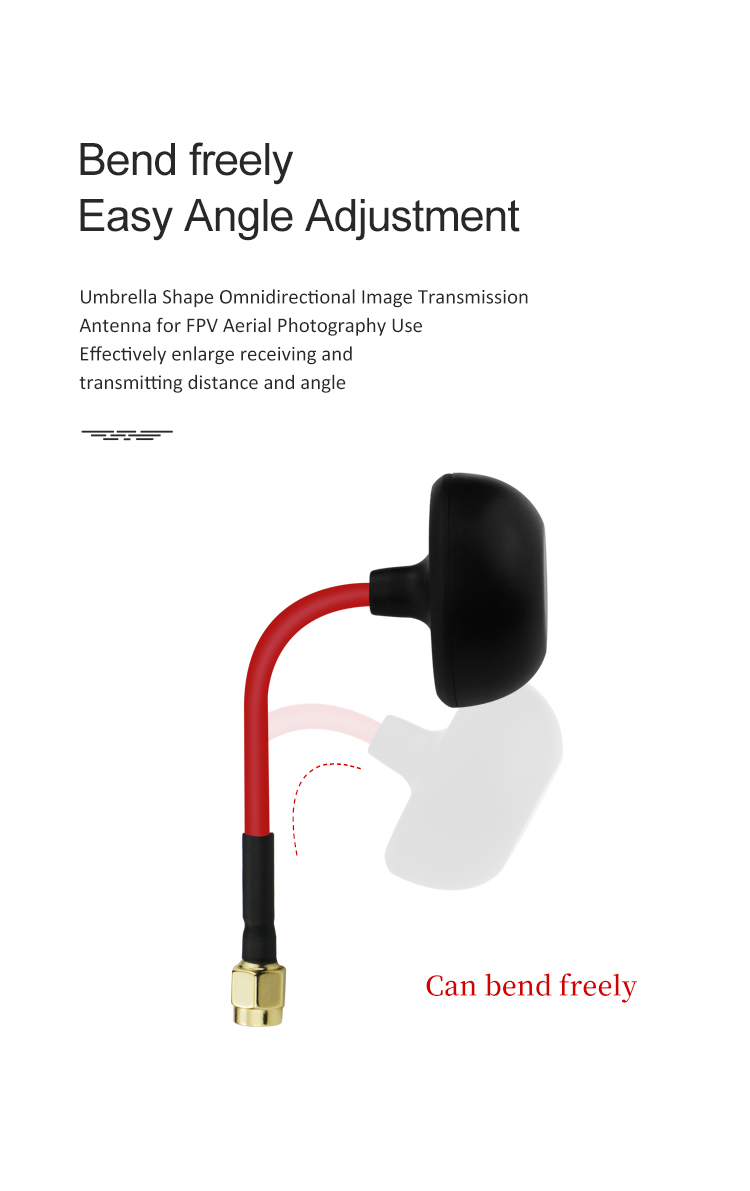

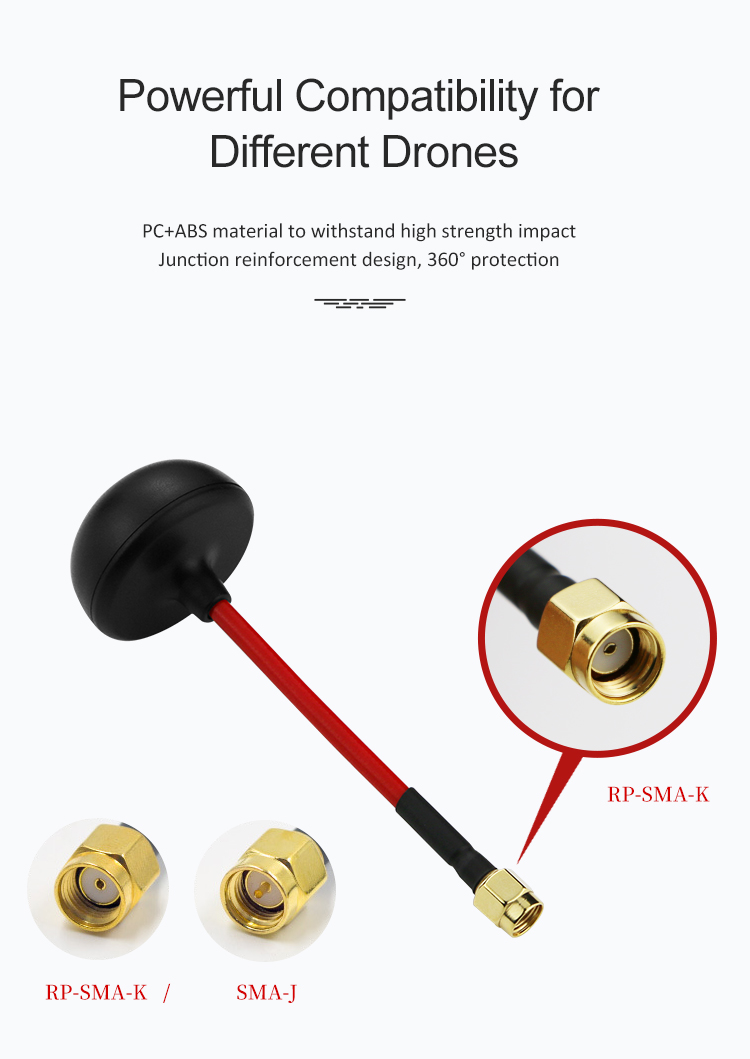

Umbrella-shaped-5_04Umbrella-shaped-5_07Umbrella-shaped-5_08
