DL-RXB3
433/315 MHz
RF receiving chip
3.6~5.5V
-118dBm
300m
31*12.5*5mm

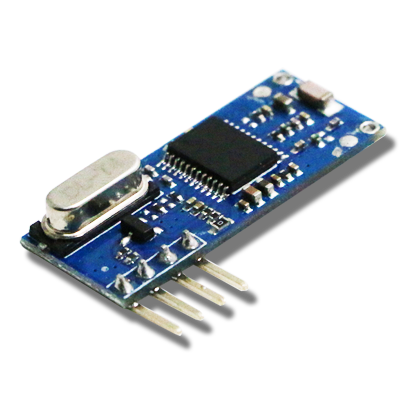

RF Receiving Module with both ASK and FSK Modulations Available
DL-RXB3 series RF module is a universal wireless receiving module for ASK and FSK modulation, which adopts imported industrial grade radio frequency wireless data receiving chip. It has high receiving sensitivity, and very strong anti-interference ability.
It can realize wireless signal input to data signal output without any external circuit. Its superior performance makes it a good choice as RF receiving module for the automotive RKE & BCM system.Users can easily develop wireless products by simply adding a data decoding circuit.
Features
● The receiving sensitivity can reach -118dBm;
● Working frequency: 315Mhz, 433Mhz (other frequencies can be customized);
● Working voltage range: 3.6~5.5V;
● Low power consumption: 6mA;
● Power consumption can be as low as 10nA in power enabled mode;
● Common use of ASK mode and FSK mode
● Good selectivity and stray radiation suppression, easy to pass safety test;
● Good local radiation suppression, can work together with multiple modules (one to many) and will
not interfere with each other, the receiving distance also not been affected;
● Temperature range: -40~85 C (industrial grade), can work well even in harsh environment.
Download Center
Technical Parameter
RF characteristics ( under the Power supply of 5V, Ta = 25 ℃, frequency 315MHz test conditions)
| Parameter | Characteristics | Reference Valu eMin. Typ. Max. | Unit |
| 1 | Frequency range | 314.90，315，315.00 | MHz |
| 2 | Modulation mode | ASK/FSK | |
| 3 | Receive sensitivity | -117 | dBm |
| 4 | Receiving bandwidth | 200 | KHz |
| 5 | Working voltage | 3.6,5.0 ,5.75 | V |
| 6 | Working current | — ,— ,4.6 | mA |
| 7 | Mirror frequency suppression | 20@336.4Mhz | dB |
| 8 | Wake up time | 9 | mS |
| 9 | Decoding Output Max. Voltage | 3.5,3.75 ,5 | V |
| 10 | Decoding Output Min. Voltage | 0.5 | V |
| 11 | Working temperature | -40 ,— ,85 | ℃ |
RF characteristics ( under the Power supply of 5V, Ta = 25 ℃, frequency 433.92MHz test conditions)
| Parameter | Characteristics | Reference Valu eMin. Typ. Max. | Unit |
| 1 | Frequency range | 433.82，433.92，434.02 | MHz |
| 2 | Modulation mode | ASK | |
| 3 | Receive sensitivity | -118 | dBm |
| 4 | Receiving bandwidth | 200 | KHz |
| 5 | Working voltage | 4.5,5.0 ,5.5 | V |
| 6 | Working current | — ,— ,4.6 | mA |
| 7 | Mirror frequency suppression | 20@412.52Mhz | dB |
| 8 | Wake up time | 9 | mS |
| 9 | Decoding Output Max. Voltage | 3.5,3.75 ,5 | V |
| 10 | Decoding Output Min. Voltage | 0.5 | V |
| 11 | Working temperature | -40 ,— ,85 | ℃ |
Pin Definitions & Size
The DL-RXB3BV module has 4 pins, which are defined in the following table
| Pin | Name | Description | Remark |
| 1 | GND | Grounding, common ground with the MCU system | |
| 2 | DATA | Data output; Can communicate with decoding unit | |
| 3 | DE/DATA | Data output; Can communicate with decoding unit | |
| 4 | VCC | Positive power supply, 3.6V-5.5V |
Typical application
Wireless Data Acquisition, Wireless Data Communication, Wireless Data Monitoring and Transmission, Wireless Voice/Audio Transmission, Wireless Sensoring; Wireless Remote Control System; Wireless Game Controller, Remote Control Toys; Wireless Keyboard, Wireless Mouse; Wireless remote control for electronic consumer products; Wireless Alarm & Security Control System; Wireless Sensor Networking, Automatic Data Collection; Industrial Remote Control, Intelligent Control System, Smart Home, Home Automation, Home Appliance Control, Building and Residential (smart home) Control, Smart City, Logistics Tracking, Warehouse Patrols, RFID (radio frequency identification); Telemetry, Automatic (Water, Electricity, Gas) Meter Reading system; Remote LED, Remote Curtain; Remote control that supports radio frequency (RF) technology
