M1-24G-DH / TH / ZH
DreamLNK/骏晔科技
M1-24G-DH / TH / ZH
24G
AC100-250V
Φ50mm
| Quantity: | |
|---|---|

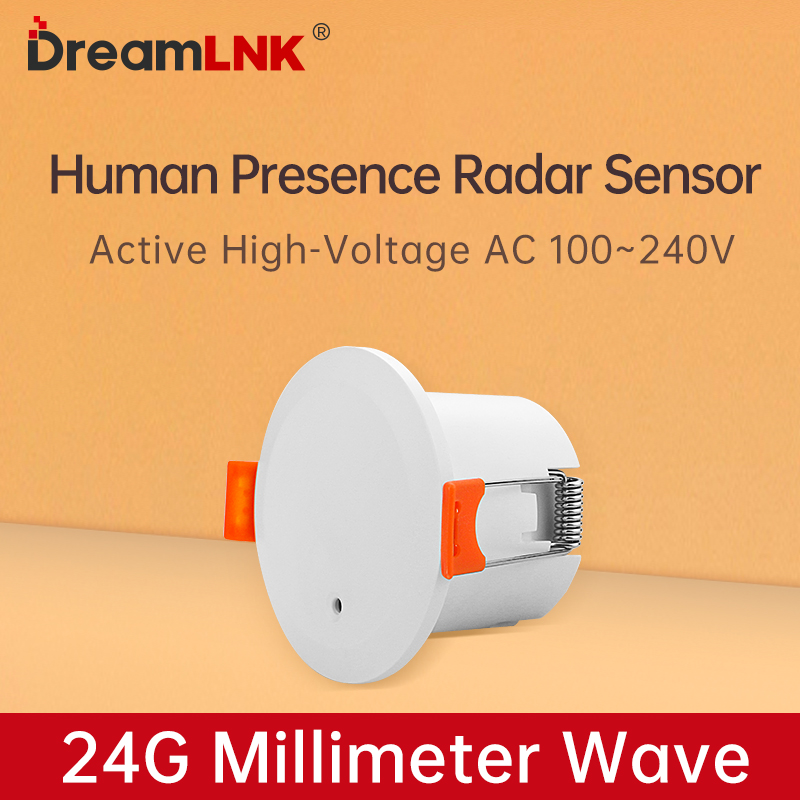

24G Microwave Human Presence Radar Sensor (AC100-250V Version)
Product Introduction

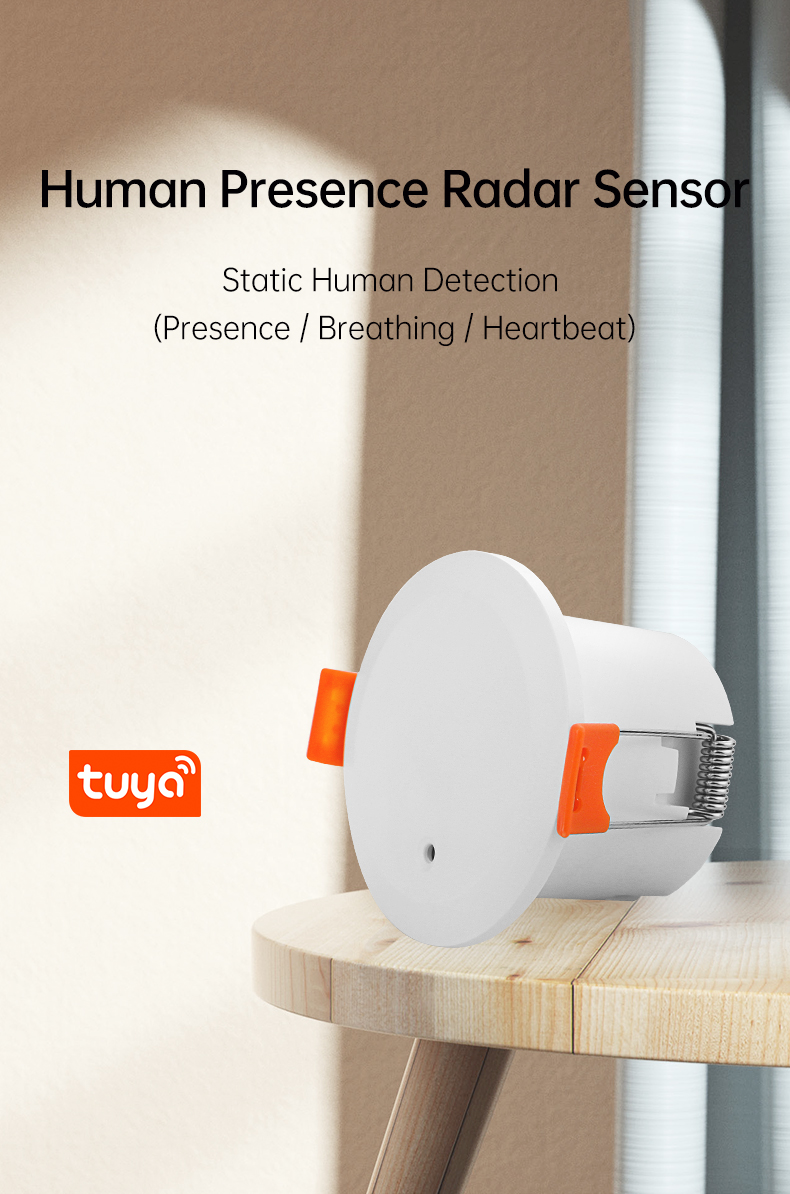

The millimeter-wave radar human presence sensor is based on 24G microwave technology, actively detecting subtle movements such as human breathing, slight movements, and human motion. It can accurately detect the presence or absence of people in the area, as well as the state of a person being stationary or sleeping, recognizing static human presence, ensuring the light stays on when someone is present.
This product is widely used in smart homes, smart hotels, smart offices, security monitoring, smart parking, and other IoT fields, providing sensing and scene linkage functions. Active DC Version is commonly used for smart lighting.

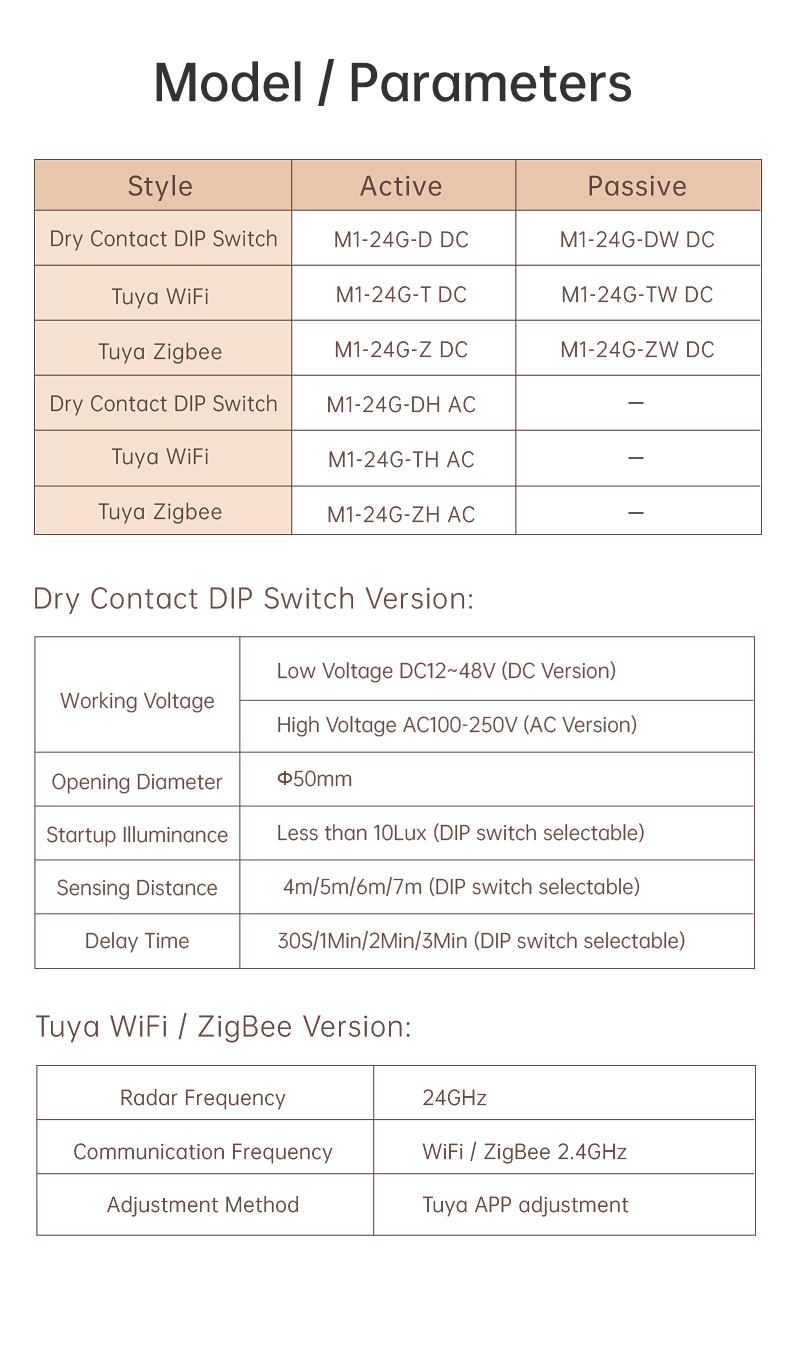

Model List
| Style | Active | Passive |
| Dry Contact DIP Switch | M1-24G-D (DC Version) | M1-24G-DW (DC Version) |
| Tuya WiFi | M1-24G-T (DC Version) | M1-24G-TW (DC Version) |
| Tuya Zigbee | M1-24G-Z (DC Version) | M1-24G-ZW (DC Version) |
| Dry Contact DIP Switch | M1-24G-DH (AC Version) | - |
| Tuya WiFi | M1-24G-TH (AC Version) | - |
| Tuya Zigbee | M1-24G-ZH (AC Version) | - |
Product Parameters

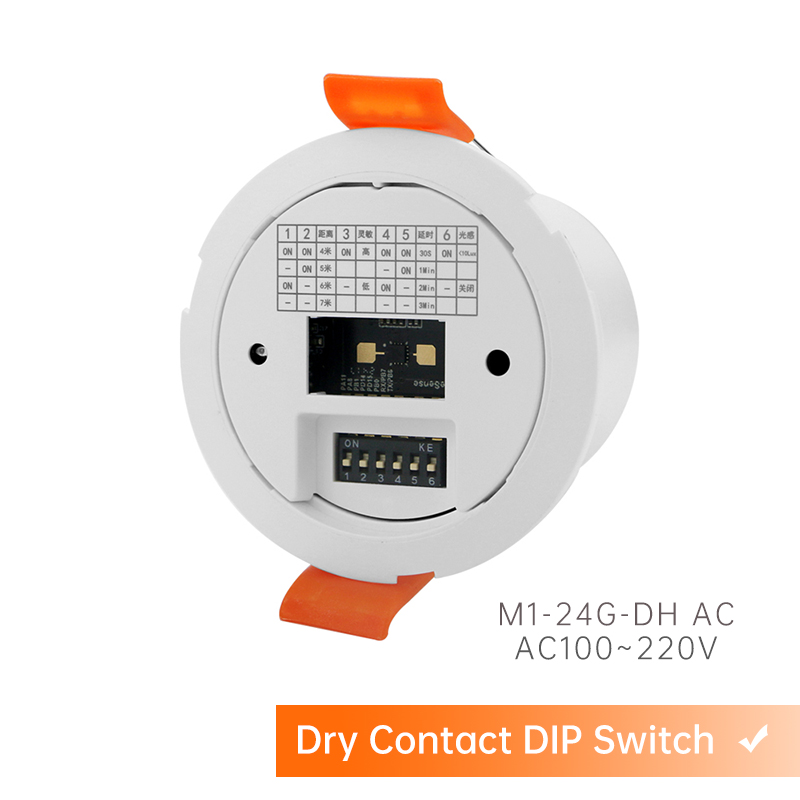

Dry Contact DIP Switch Version:
| Working Voltage | Low Voltage DC12~48V (DC Version) |
| High Voltage AC100-250V (AC Version) | |

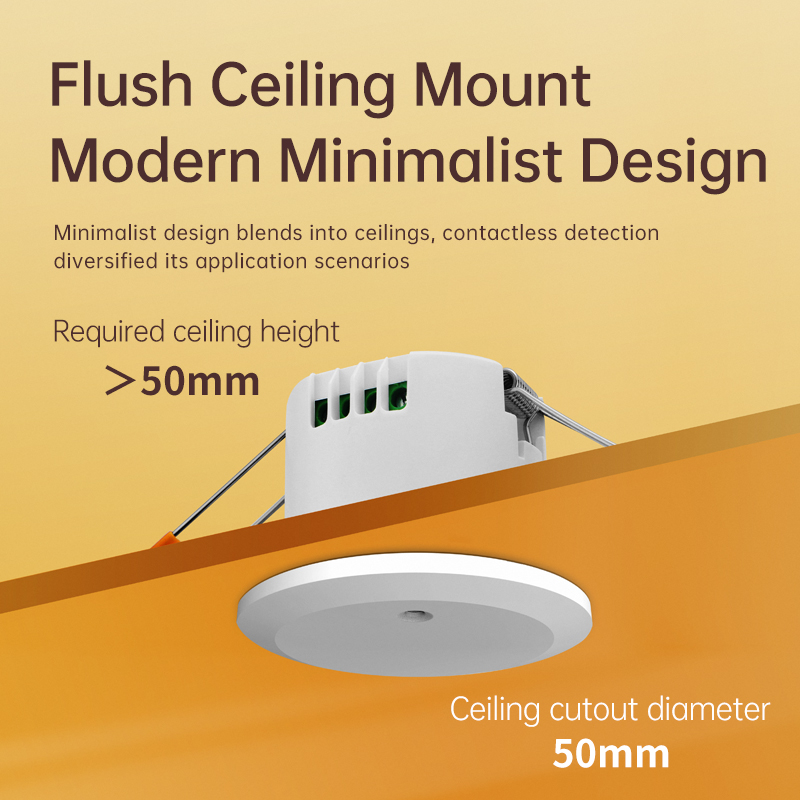

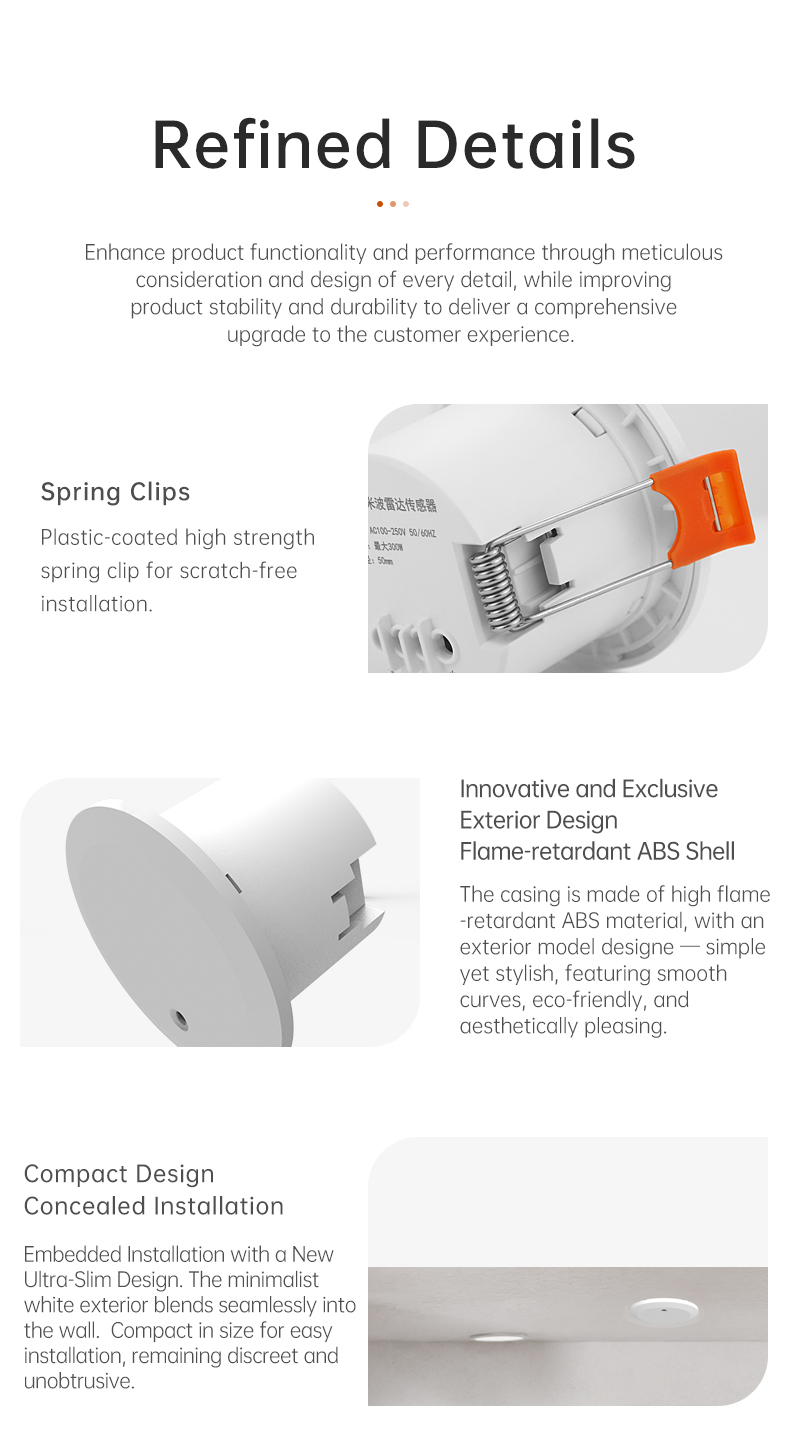

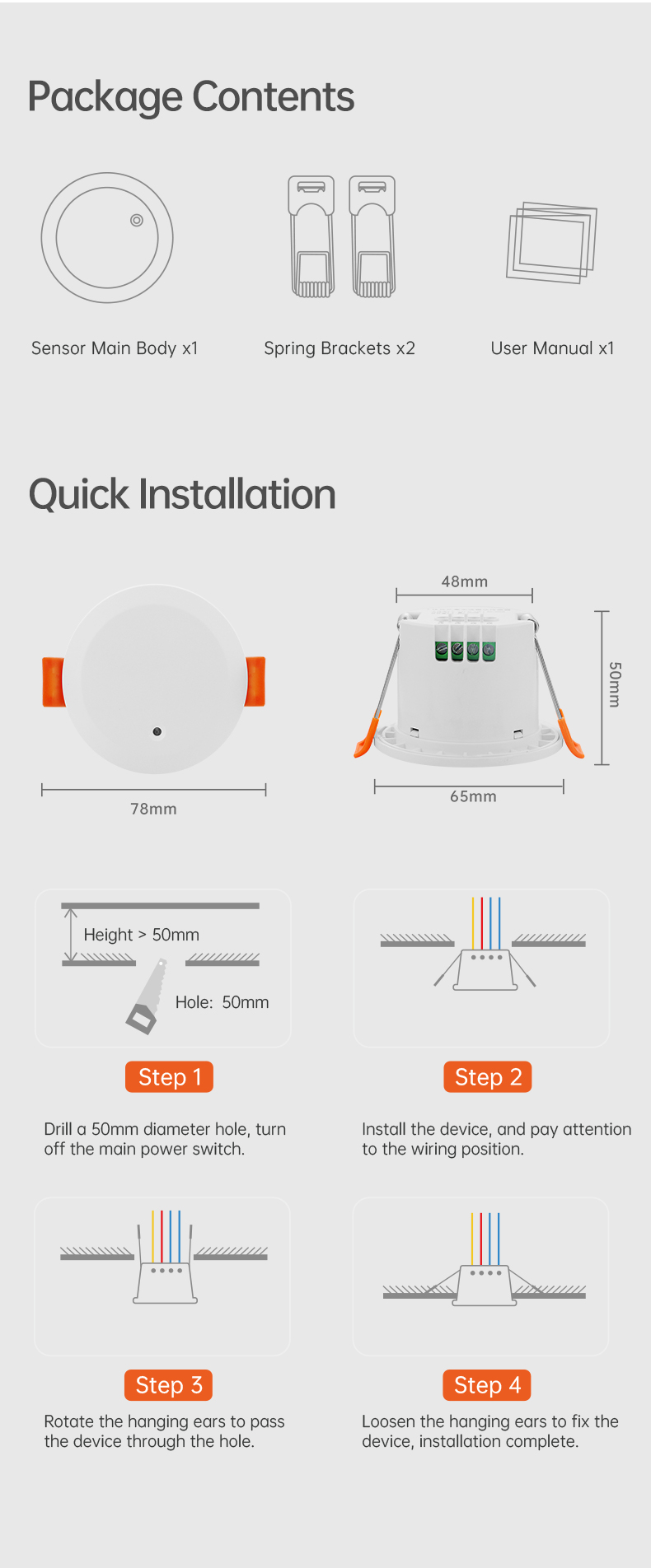

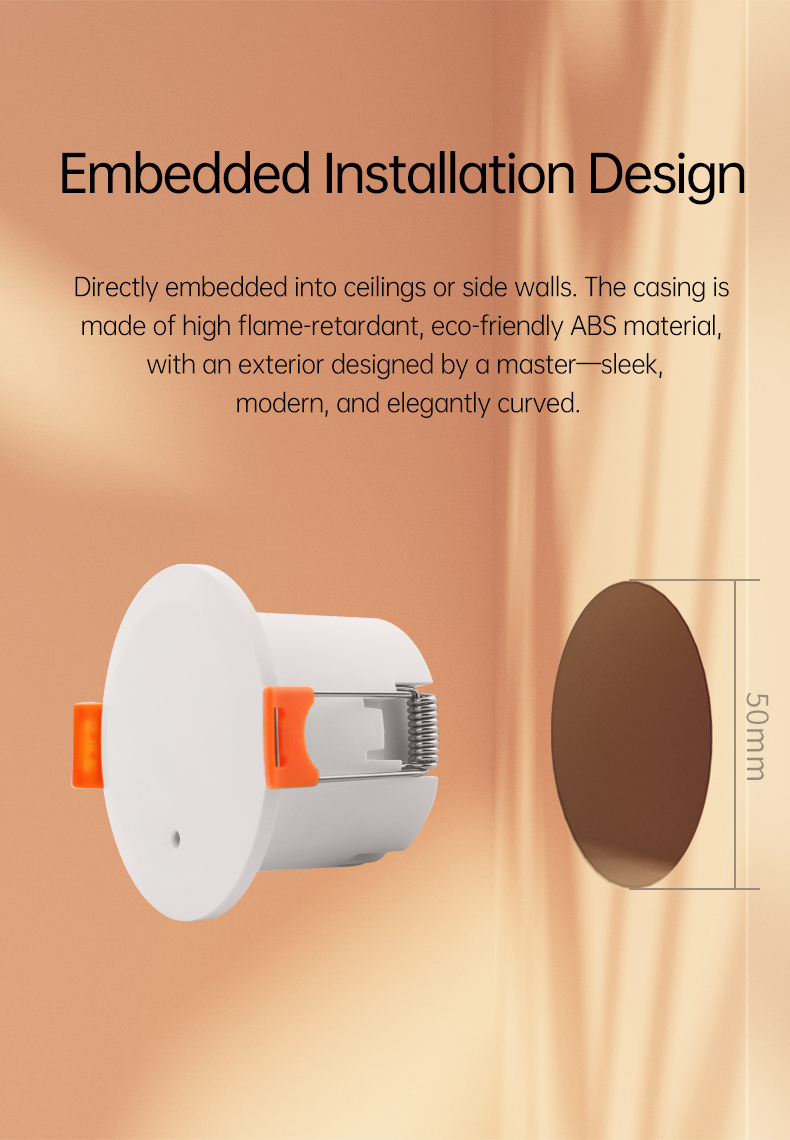

| Opening Diameter | Φ50mm |

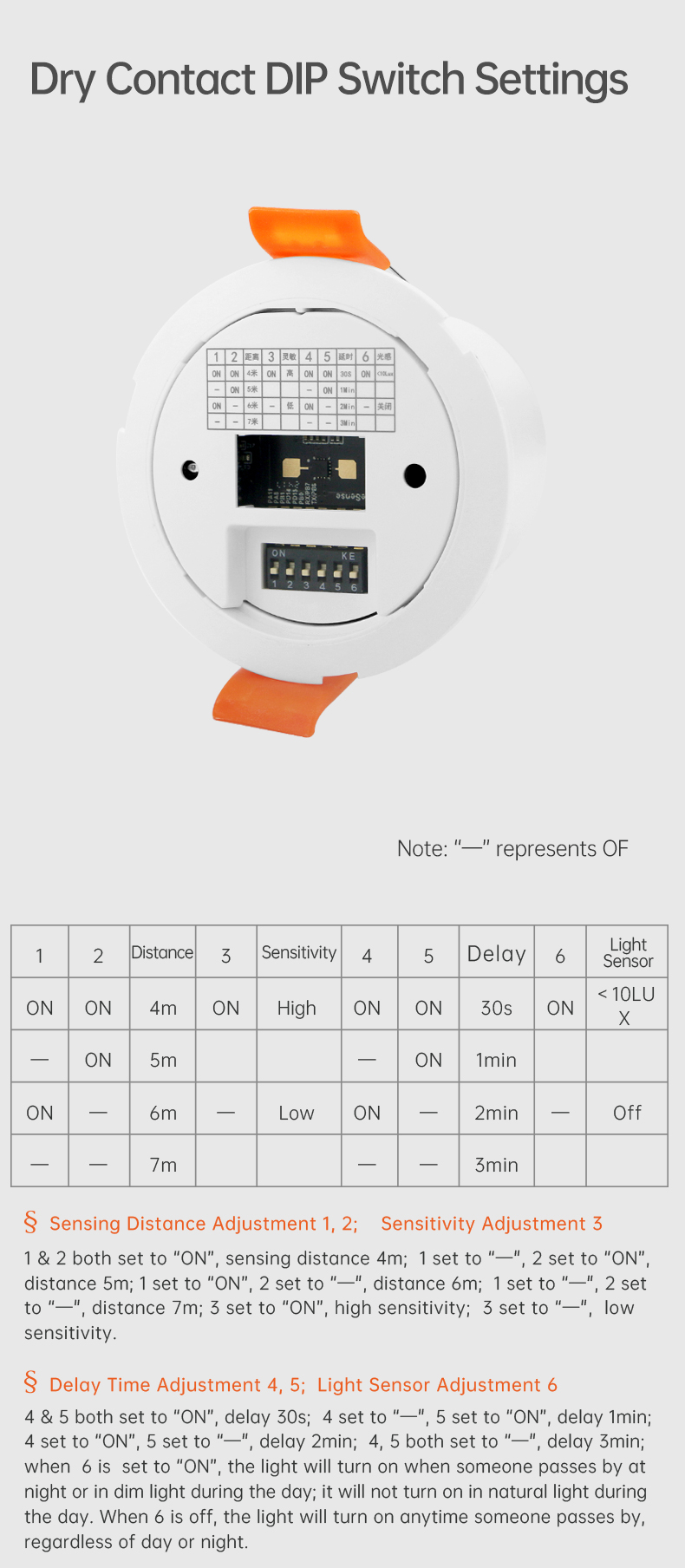

| Startup Illuminance | Less than 10Lux (DIP switch selectable) |

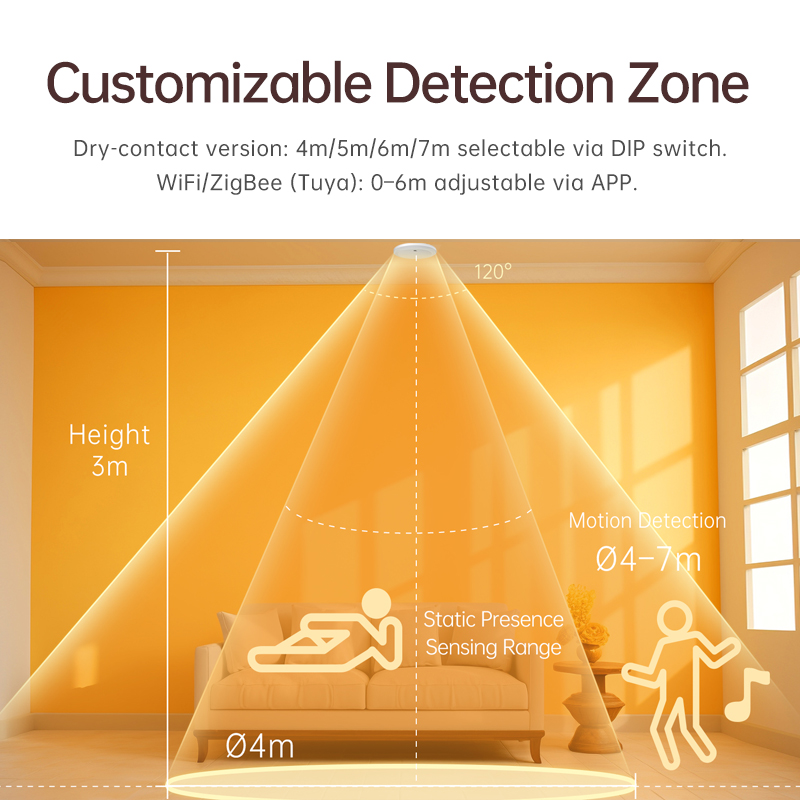

| Sensing Distance | 4m/5m/6m/7m (DIP switch selectable) |
| Delay Time | 30S/1Min/2Min/3Min (DIP switch selectable) |
Tuya WiFi / ZigBee Version:
| Radar Frequency | 24GHz |
| Communication Frequency | WiFi / ZigBee 2.4GHz |

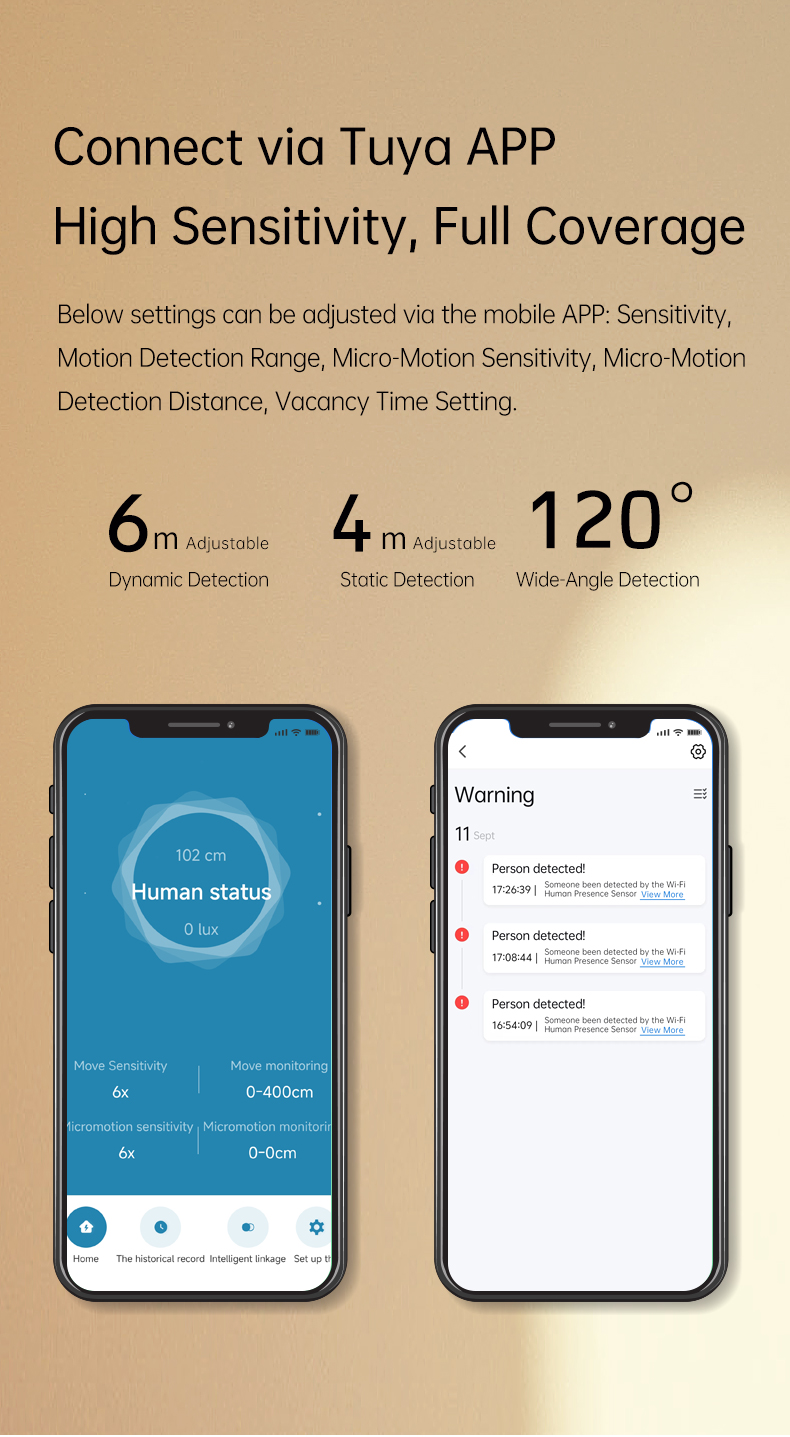

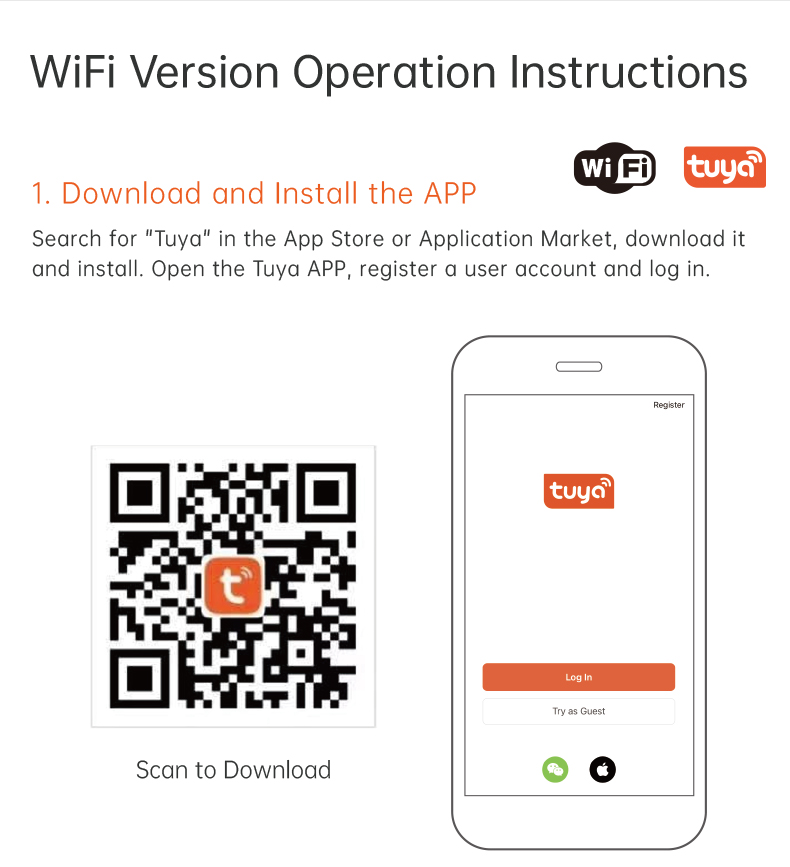

| Adjustment Method | Tuya APP adjustment |
Wide Applications
Widely used in IoT fields such as smart homes, smart hotels, smart offices, security monitoring, and smart parking to provide sensing and scene linkage functions.
Smart Office: Auto-off lights/projectors when vacant.
Smart Security: Hallway lighting triggered by motion.
Smart Hotel: Privacy-aware presence detection.
Smart Parking: Lights activate when vehicles/people pass by
Parking/Exhibitions: Lights activate on approach.
Download Center
24G Millimeter Wave Radar Human Presence Sensor Instruction Manual V1.0
24G Millimeter Wave Radar Human Presence Sensor Catalogue V1.0
