You are here: Home / Products / Antenna / Patch Antenna / 2.4+5.8G Self Adhesive Patch Antenna with 2M Cable And SMA-J Connector

Product Detail

Share to:

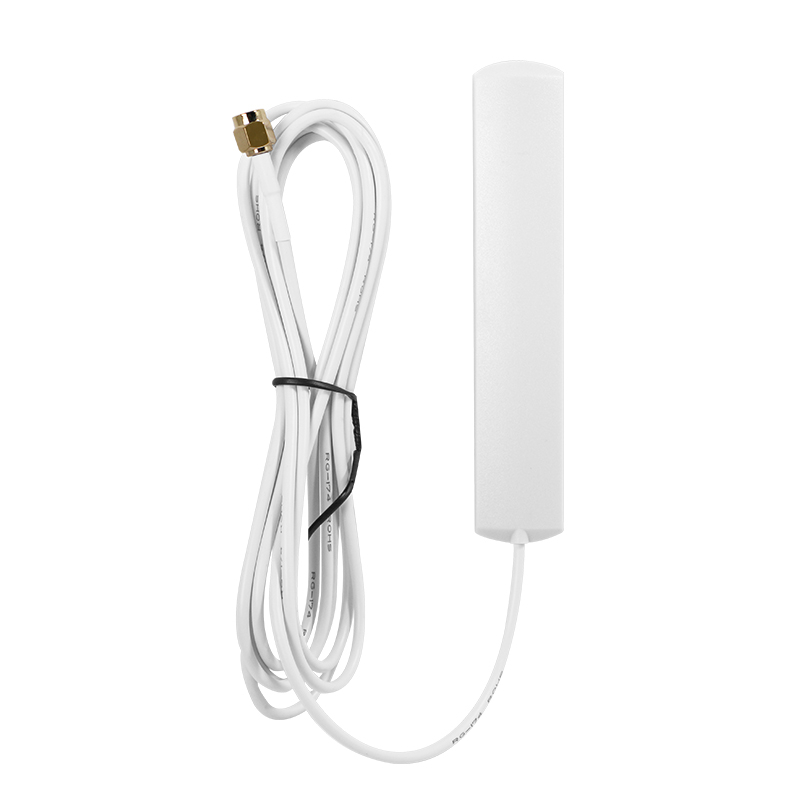

2.4+5.8G Self Adhesive Patch Antenna with 2M Cable And SMA-J Connector

2.4+5.8G Self Adhesive Patch Antenna with 2M Cable And SMA-J Connector, offered by China manufacturer DREAMLNK
  • DL-801-2458
  • 2.4+5.8G
  • 50W
  • 116*21.5mm,2000±5 mm
Quantity:

2.4+5.8G Self Adhesive Patch Antenna with 2M Cable And SMA-J Connector

Auto Pre-market Antenna, External Wi-Fi Antenna, Wi-Fi Antenna, Patch Antenna, SMD Antenna, 2.4G Antenna, 5G antenna...

More frequencies can be customized according to your needs: full frequency GSM,2.4G, 3G, 4G, 5G, etc.


Advantage:

Sun-resistant , Waterproof, Explosion-proof, Antifreeze, Windproof

High stability, high linearity, ultra-low noise figure, high out-of-band interference suppression


● High gain and wide range: The gain will be affected by the environment, the more open area, the further transmission distance

● Easy installation

● Stable performance

● Powerful 3M sticker

● High receiving sensitivity

● Strong anti-interference

● Stronger signal


Antenna characteristics:

Excellent material: copper core material, with internal high-transmission oxygen-free copper core wire, makes signal transmission more stable and faster

● ABS material: green material, eco-friendly, waterproof and durable

● SMA connector: gold-plated copper, international standard, rigorous production

● RG174 line:  high-density pure copper, stable transmission


Applicable Products: cabinets, chassis, vehicles, routers, etc.

Application Areas: wireless monitoring, smart home, smart transportation, smart city,smart agriculture, etc.


Electrical test report:

Test parameters
Product Name 2.4+5.8G SMD Chip PCB Antenna
Model No 801
Electrical Specifications
Frequency 2.4/5.8GHZ
Impedance 50Ω
V.S.W.R ≦1.5
Polarization Verticall
Radiation direction  Full direction
Gain 5dBi
Linear polarization vertical
Max Power 50W
Mechanical Specifications
Connector SMA-J
Cable Length 2000±5 mm
Operating temperature -30℃~+80℃
Storage temperature 40~85%


Download Center

801 2.4g+5.8g Specification V1.0 do

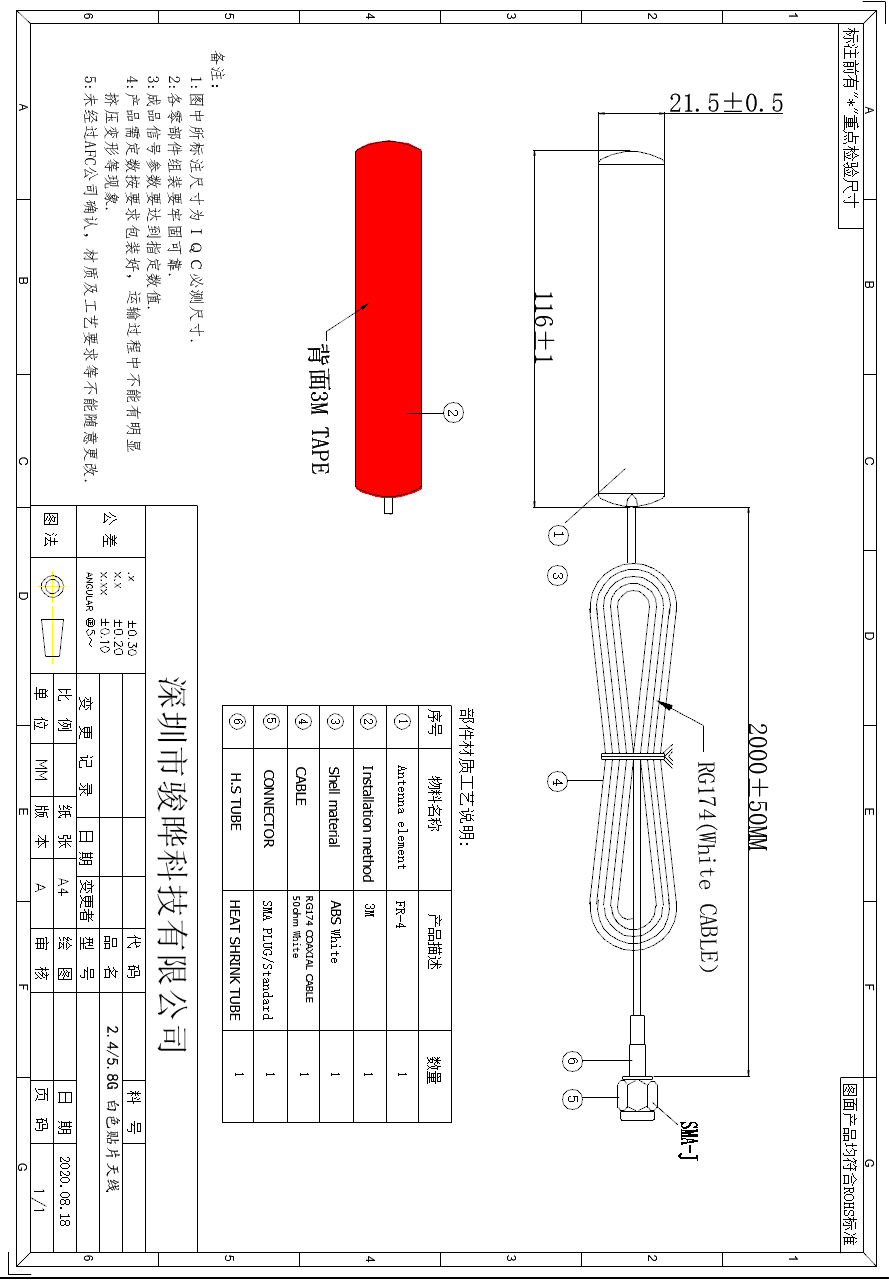

Size:

801骏晔

2.4+5.8G Self Adhesive Patch Antenna with 2M Cable And SMA-J Connector, offered by China manufacturer DREAMLNK. Buy directly Patch Antenna with low price and high quality from DREAMLNK.
