You are here: Home / Products / Antenna / Patch Antenna / Self Adhesive Auto Pre-market Use 4G PCB Patch Antenna

Product Detail

Share to:

Self Adhesive Auto Pre-market Use 4G PCB Patch Antenna

Self Adhesive Auto Pre-market Use 4G PCB Patch Antenna with 2 meters of cable. Professional antenna manufacturer specializing in wireless communication products research & development!
  • 50Ω
  • DL-801-4G
  • 820-960/1710-2700MHz
  • 50W
  • 116*21.5mm, 2m cable
Quantity:

Self Adhesive Auto Pre-market Use 4G PCB Patch Antenna with High Gain (5 dBi)

Professional antenna manufacturer specializing in wireless communication products research & development!


Advantage:

Waterproof, Explosion-proof, Antifreeze, Windproof

High stability, high linearity, ultra-low noise figure, high out-of-band interference suppression


● High gain and wide range: The gain will be affected by the environment, the more open area, the further transmission distance

● Easy installation

● Stable performance

● Powerful 3M sticker

● High receiving sensitivity

● Strong anti-interference

● Stronger signal

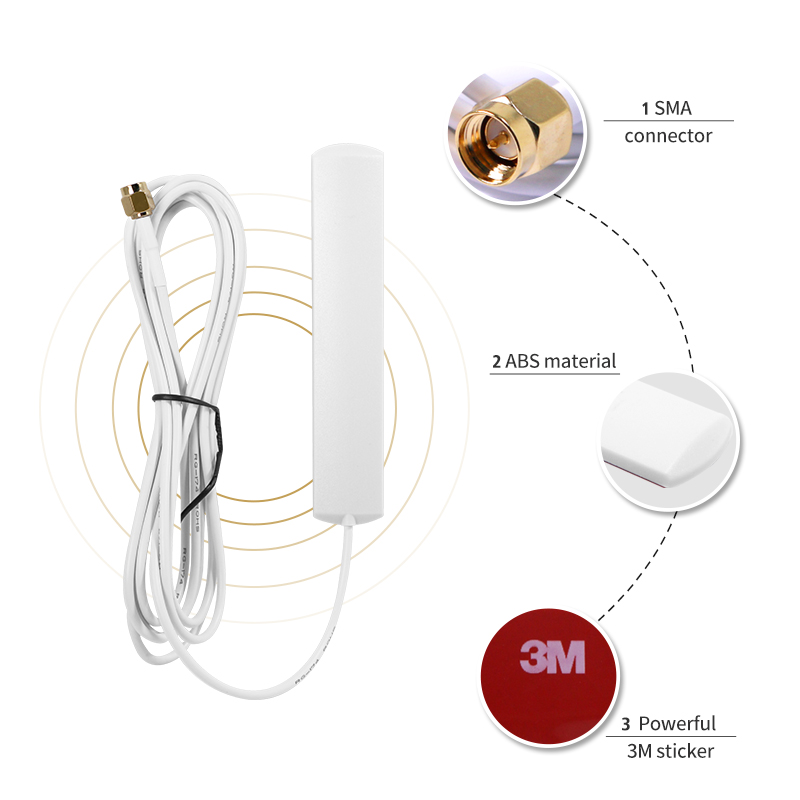

Superior material:

copper core material, with internal high-transmission oxygen-free copper core wire, makes signal transmission more stable and faster

● ABS material:  green material, eco-friendly, waterproof and durable

● SMA connector: gold-plated copper, international standard, rigorous production

● RG174 line:  high-density pure copper, stable transmission

More frequencies can be customized according to your needs: full frequency GSM,2.4G, 3G, 4G, 5G, etc

Applicable Products:   cabinets, chassis, vehicles, routers, etc.

Application Areas:   wireless monitoring, smart home, smart transportation, smart city,smart agriculture, wireless modules, etc.

Suitable for all kinds of networks:   GSM / TD-SCDMA / WCDMA / TD-LTE / FDD-LTE /CDMA1X / EVDO


Electrical test report:

Test parameters
Product Name 4G Patch Antenna
Model No 801
Electrical Specifications
Frequency 820-960MHz/1710-2700MHz
Impedance 50Ω
V.S.W.R ≦1.5
Polarization Verticall
Radiation direction  Full direction
Gain 5dBi
Linear polarization vertical
Power 50W
Mechanical Specifications
Connector SMA-J
Cable Length 2000±5 mm
Operating temperature -30℃~+80℃
Storage temperature 40~85%


Download Center

801 4g Specification V1.0 do


Size:

4G贴片骏晔
