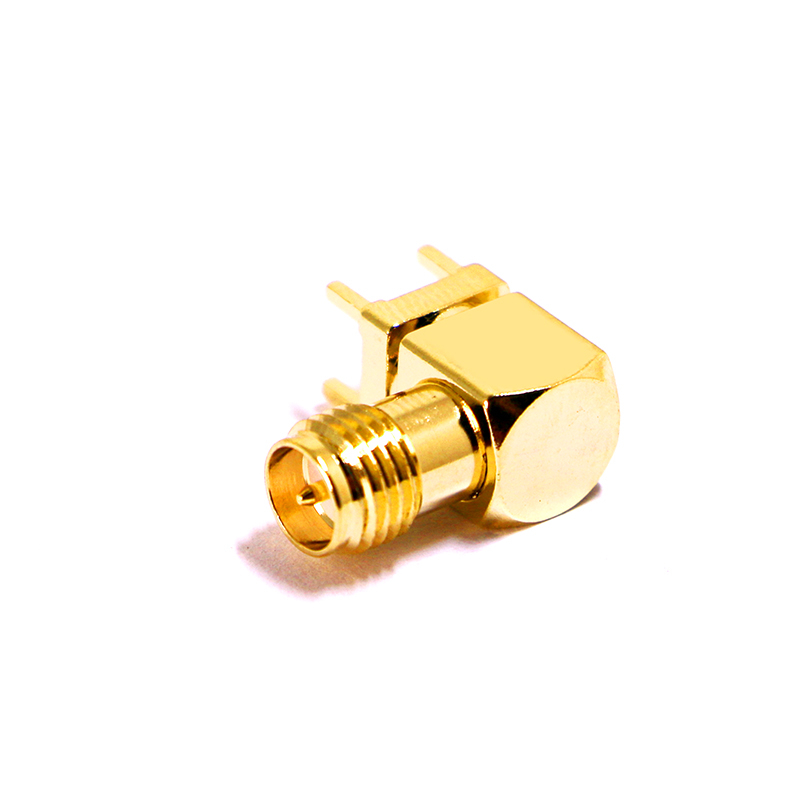

SMA-KWE901
| Quantity: | |
|---|---|
Product Description:
SMA series products are a kind of coaxial connector with small threaded connection which are widely used. They adopt UK standard threaded connection for high strength and good shock resistance. The central conductor and insulator of the SMA series connectors are usually captured to obtain a sufficiently low VSWR. The end of the outer conductor contacts directly to minimize the insertion loss.
Compared with other types of connectors, the SMA series connectors have the characteristics of small size and low VSWR. They will still have good electrical performance even at 18 Ghz, with appropriate cables; and these special processed SMA connector can be used up to 25Ghz.
SMA series products have long lifespan, superior performance and high reliability. They are widely used to connect radio frequency coaxial cable or microstrip in the radio frequency circuit of microwave devices and digital communication devices.
Features
Material: 100% copper, environmentally friendly, good shielding effect, not easy to blacken
Surface Treatment: authentic gold plating, antioxidant, corrosion resistance, increased conductivity, low loss.
Download Center
Technical Parameter
Model No. | SMA-KWE901 |
Material | brass with gold-plated surface |
SMA-KE-P903 SMA-KE female straight head (180 degrees) - external screw type, internal hole, 11.5 thread – P type offset 4 feet | |
Electrical Characteristics
Impedance | 50 Ohm | Insulation Resistance | 5000 Mohm |
Working Frequency | DC-3 GHz | Contact Resistance | Center contact: 3 Mohm |
S.W.R. | ≤1.5 | External contact | ≤2 Mohm |
Working Voltage | 335V/ Max | Operating Temperature Range | -55°C ~ +125°C |

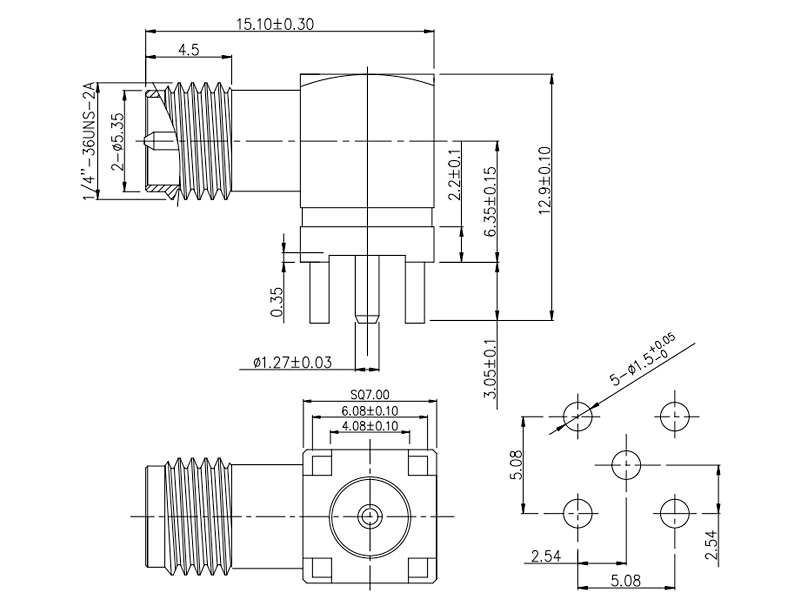

Size
Applications:
Low Frequency Applications:
Animal husbandry management system; Anti-theft of automobiles, Keyless Entry System; Marathon running system; Smart parking and vehicle management system; Automatic refueling system; Smart hotel system; Access control and safety management system.
High frequency applications:
Book management system; Liquefied gas cylinders; Garment production line, Logistics system; Water/Gas/Electricity meters; Access control system; Medical logistics system; Intelligent shelves.
VHF applications:
Supply Chain Management; Automated production lines; Logistics management; Containers management; Application of large-scale personnel access management.
