DL-RTS4463
433M
Si4463
-20~20dBm
1.8~3.6V
-126dBm
2000m
15*12.5*2
| Quantity: | |
|---|---|
High-performance FSK Transceiver Module with Si4463 Chip
DL-RTS4463 was designed base on Silicon Labs' Si4463 wireless transceiver chip. It is a compact,low-power, long-distance wireless transceiver module. The chip launched by Silicon Labs is mainly set to 315MHz, 433MHz, 868MHz, 915MHz and other special frequency bands of the national networks. The sensitivity can reach -126dbm, the maximum transmission rate can reach 1000Kbps, and the output power can range from -20dbm to + 20dbm through the register configuration.This module integrates all RF-related functions. Users do not need to have a deep understanding of RF circuit design; they can use this RF module to easily develop wireless products with stable performance and high reliability, shortening the product development cycle.
This RF transceiver module adopts single-chip architecture, and the periphery adopts high-precision crystal, high-Q Murata inductor, small volume but high-capacity filter capacitor. All SMD components are used, and the interface is encapsulated with standard pitch stamps, which is conducive to the development of compact systems and the application of SMT in mass production.
Features
● 2000m transmission distance (1200bps)
● Working frequency: 433.92m (other frequencies need to be customized)
● Operating voltage: 1.8V-3.6V
● Low current loss in SHUTDOWN mode
● Efficient 4 - line SPI interface
● Separate 64-byte RX FIFO and TX FIFO
● Support WOR wireless wake-up function for portable devices
Applications
● Wireless sensor;
● Home automation;
● Automated data collection;
● Industrial remote control, telemetry;
● Data monitoring and transmission;
● Home Appliance Control;
● Security, alarm control;
Download Center
Technical Parameter
DC characteristics
| Description | Min. | Max. | Unit |
| Supply voltage | 1.8 | 3.6 | V |
| Working current | RX ＜13mA | TX=85mA@20dbm | mA |
| Standby current | ＜1uA | mA | |
| IO port voltage | Vss-0.3 | Vdd+0.3 | V |
| Working temperature | -40 | 85 | ℃ |
DC characteristics of the Module
RF characteristics (Unless otherwise stated, the temperature is 25 ℃, and VCC is 3.3V)
| No | Characteristics | Index parameter range | Unit | ||
| Min. | Typi. | Max. | |||
| 1 | Frequency range (customized by industry) | 142 | 433.92 | 1050 | MHz |
| 2 | Frequency interval | 100K | Hz | ||
| 3 | Transmit power | -20 | 20 | dBm | |
| 4 | Receive sensitivity | -126 | dBm | ||
| 5 | Modulation | GFSK | 2-FSK | OOK | MSK |
| 6 | Transmission rate | 1.2 | 1000 | Kbps | |
| 7 | Harmonic power | -45 | — — | -35 | dBm |
| 8 | Communication distance | 1800 | 2000 | M | |
| 9 | OOK Modulation mode, sensitivity | -112 | dBm | ||
| 10 | OOK modulation mode, rate | 120 | Kbps | ||
| 11 | Standby power consumption | 0.9 | MHz | ||
| 12 | Crystal accuracy | 10 | PPM | ||
High frequency characteristic table of the module

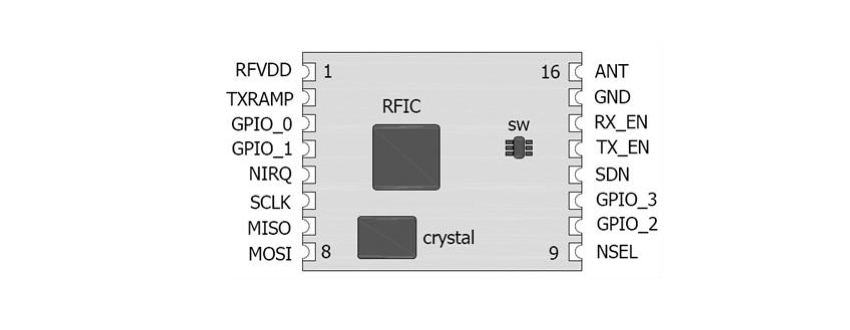

Pins Definition
| Pin | Name | Description | Remark |
| 1 | VDD | Antenna interface, 50Ω standard impedance | RF VDD |
| 2 | GND | Grounding, common ground with the system | |
| 3/4 | NC | Free pins, not connected to any hardware | |
| 5 | VCC | Power supply, DC2.0~3.6V | Configuration register |
| 6 | GPIO_0 | Implement different functional applications, and configure AMP transceiver capabilities | |
| 7 | NC | Free pins, not connected to any hardware | |
| 8 | MISO | Grounding, common ground with the system | |
| 9 | GND | 0~VDD Digital input | |
| 10 | SDO | SPI date output, MISO | |
| 11 | SDI | SPI data input，MOSI | |
| 12 | SCLK | SCLK input | |
| 13 | NSEL | SPI chip select input terminal | |
| 14 | NIRQ | For MCU Data Transmit/Receive Interrupt Response Processing | I/O |
| 15 | SDN | SDN=0 means working, SDN=1 entering low power state | Register value missing |

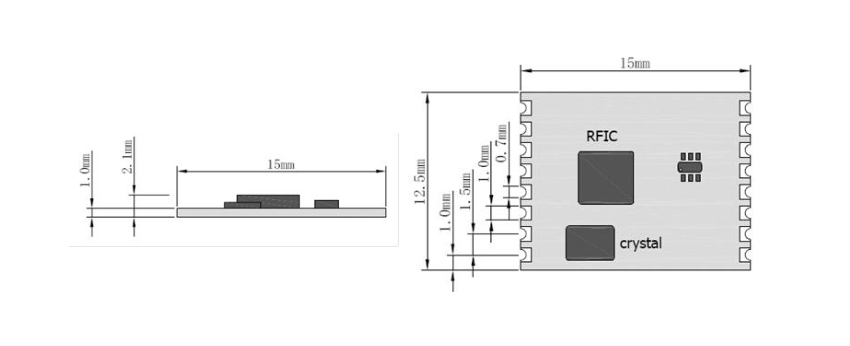

Size
Dreamlnk is specializing in ISM band micropower wireless communication technology for almost 8 years, providing different kinds of wireless modules and one-stop IoT solutions, including 433/868/915MHz wireless modules, 2.4G wireless Modules, FSK Wireless Transceiver Modules, Antennas, Remote Controls, and customized wireless RF solutions. Welcome to inquire!
