SMA-SMA Extension Cable with 500mm RG178 Cable

SMA-SMA Extension Cable with 500mm RG178 Cable; SMA-J Connector, 0~6Ghz Frequency Available; SMA-J (Male Head, Inside Pin)
  • DL-CA-SMA-JZ-178-500
  • 0~6G
  • Phosphor bronze;Gold-plated
  • N/M
  • N/M
  • -40 ~ +85℃
  • 500mm
Quantity:

SMA-J - SMA-J Extension Connector with 500mm RG178 Cable for Antenna Use


Advantages

●  Good Compatibility

●  Signal Sensitivity

●  Good Stability

●  Easy to Install

●  Low Power Consumption

●  Widely Used


Download Center

DL-CA-SMA-JZ-178-500 Specification V1.0 do


Electrical test report:

Length 500mm
Model No. DL-CA-SMA-JZ-178-500
Net Weight 0~6G
Impedance 50 OHM
Connector type

SMA-J to SMA-j, External thread, Internal hole

Max power 10 W
Conduction impedence 0.5ohm
Insulation resistance 30 ohm
Connector SMA-J & SMA-J
Cable RG178, L=500mm
Temperature -45~80°C

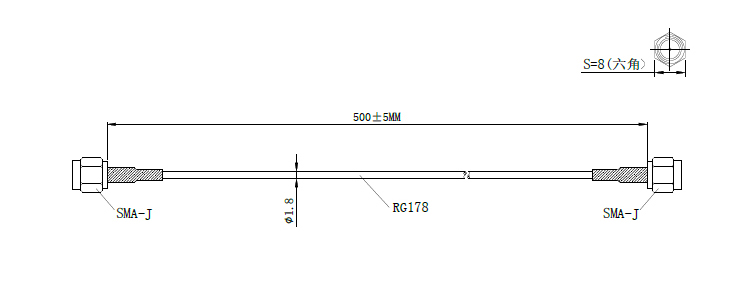

Size:

DL-CA-SMA-JZ-178-500转接线_08

SWR:

DL-CA-SMA-JZ-178-500转接线_10DL-CA-SMA-JZ-178-500-Extension-Connector_01

DL-CA-SMA-JZ-178-500-Extension-Connector_03

DL-CA-SMA-JZ-178-500-Extension-Connector_04

DL-CA-SMA-JZ-178-500-Extension-Connector_05DL-CA-SMA-JZ-178-500-Extension-Connector_12
